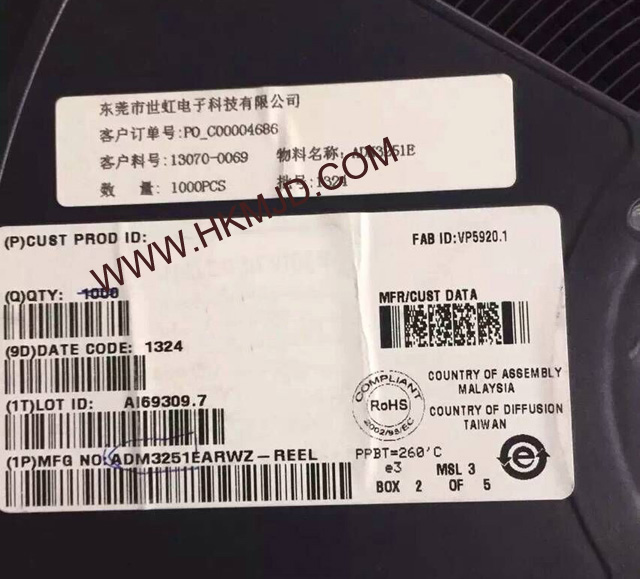

AD ADM3251E ADM3251EARWZ Isolated, Single Channel RS232 Line Driver/Receiver

Description


2.5 kV fully isolated (power and data) RS-232 transceiver

isoPower integrated, isolated dc-to-dc converter

460 kbps data rate

1 Tx and 1 Rx

Meets EIA/TIA-232E specifications

ESD protection on RIN and TOUT pins

±8 kV: contact discharge

±15 kV: air gap discharge

0.1 μF charge pump capacitors

High common-mode transient immunity: >25 kV/μs

Safety and regulatory approvals

UL recognition

2500 V rms for 1 minute per UL 1577

VDE Certificate of Conformity

DIN EN 60747-5-2 (VDE 0884 Teil 2): 2003-01

CSA Component Acceptance Notice #5A

Operating temperature range: −40°C to +85°C

Wide body, 20-lead SOIC package
