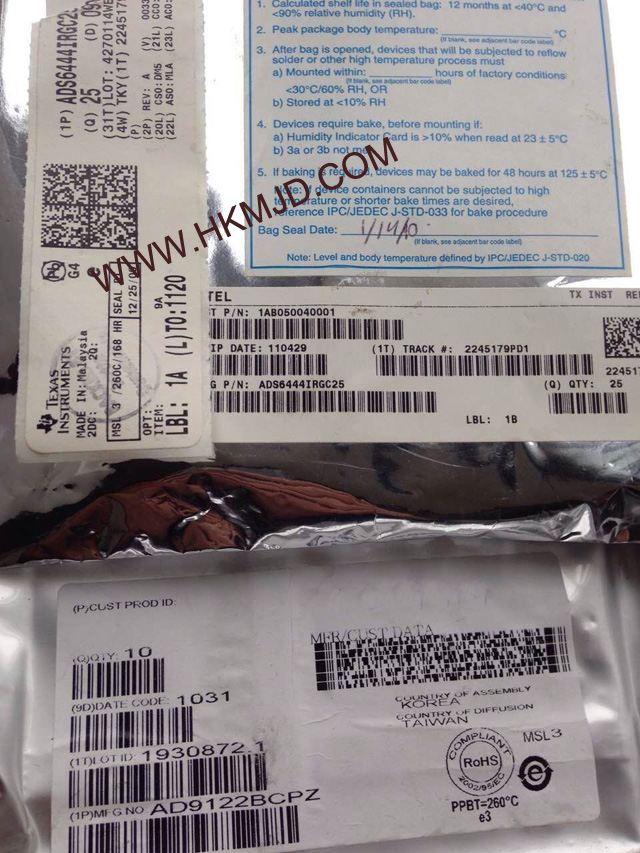

TI ADS6444 ADS6444IRGC 125/105/80/65 MSPS ADC WITH SERIAL LVDS OUTPUTS

Description


Maximum Sample Rate: 125 MSPS

14-Bit Resolution with No Missing Codes

Simultaneous Sample and Hold

3.5dB Coarse Gain and up to 6dB

Programmable Fine Gain for SFDR/SNR Trade-Off

Serialized LVDS Outputs with Programmable

Internal Termination Option

Supports Sine, LVCMOS, LVPECL, LVDS Clock

Inputs and Amplitude down to 400 mVPP

Internal Reference with External Reference Support

No External Decoupling Required for References

3.3-V Analog and Digital Supply

64 QFN Package (9 mm × 9 mm)
