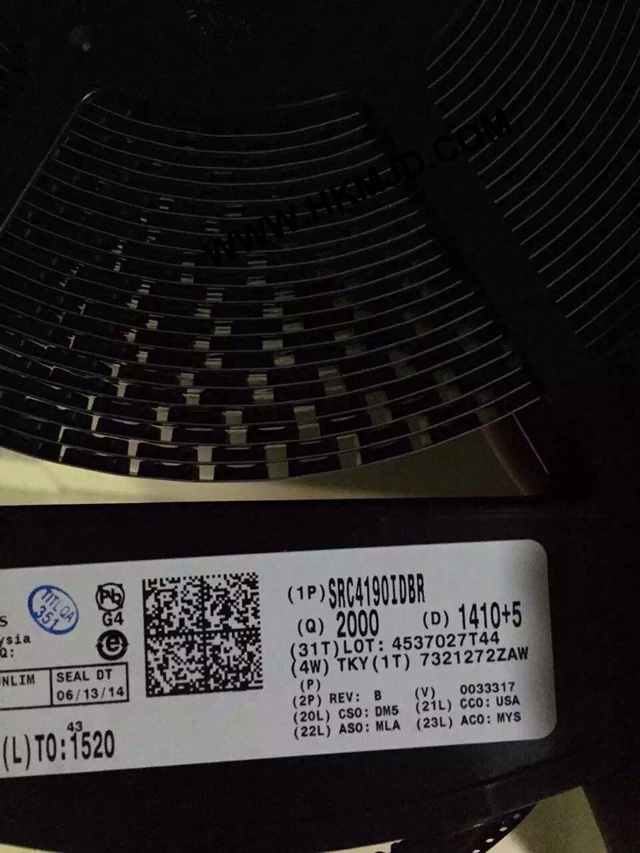

TI SRC4190 SRC4190IDBR 192kHz Stereo Asynchronous Sample Rate Converters

Description


Features

AUTOMATIC SENSING OF THE INPUT-TOOUTPUT SAMPLING RATIO

WIDE INPUT-TO-OUTPUT SAMPLING RANGE: 16:1 to 1:16

SUPPORTS INPUT AND OUTPUT SAMPLING

RATES UP TO 212kHz

DYNAMIC RANGE: 128dB (–60dbFS input,

BW = 20Hz to fS/2, A-Weighted)

THD+N: –125dB (0dbFS input, BW = 20Hz to fS/2)

ATTENUATES SAMPLING AND REFERENCE

CLOCK JITTER

HIGH PERFORMANCE, LINEAR PHASE

DIGITAL FILTERING

FLEXIBLE AUDIO SERIAL PORTS:

Master or Slave Mode Operation

Supports I2S, Left Justified, Right Justified, and

TDM Data Formats

Supports 16, 18, 20, or 24-Bit Audio Data

TDM Mode allows daisy chaining of up to eight devices

SUPPORTS 24-, 20-, 18-, or 16-BIT INPUT AND OUTPUT DATA

All output data is dithered from the internal 28-Bit data path

LOW GROUP DELAY OPTION FOR

INTERPOLATION FILTER

SOFT MUTE FUNCTION

BYPASS MODE

POWER DOWN MODE

OPERATES FROM A SINGLE +3.3 VOLT

POWER SUPPLY

SMALL SSOP-28 PACKAGE

PIN COMPATIBLE WITH THE SRC4192,

AD1895, AND AD1896(2)
