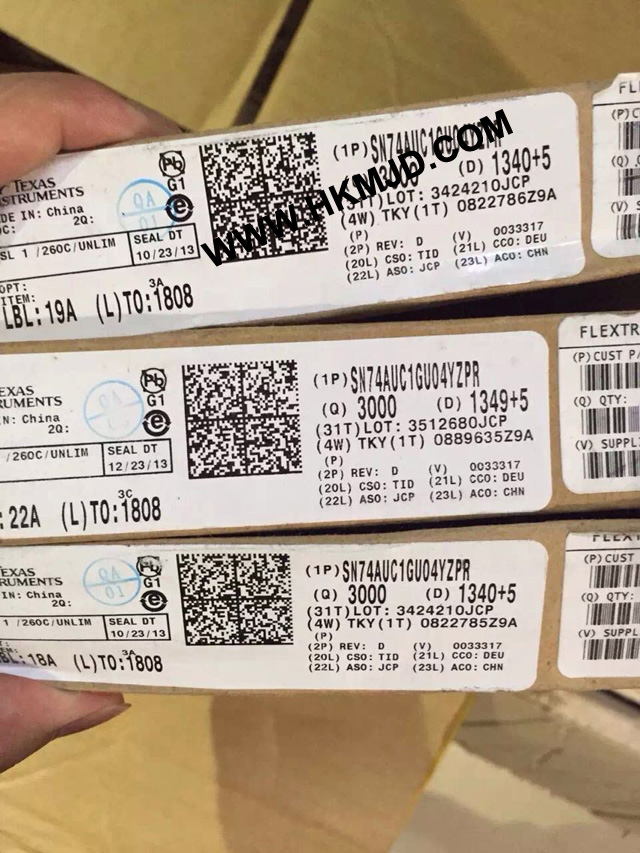

TI SN74AUC1GU04 SN74AUC1GU04YZPR SINGLE INVERTER GATE

Description


Features

Available in the Texas Instruments

NanoFree™ Package

Optimized for 1.8-V Operation and Is 3.6-V I/O

Tolerant to Support Mixed-Mode Signal Operation

Sub-1-V Operable

Max tpd of 2.4 ns at 1.8 V

Low Power Consumption, 10-µA Max ICC

±8-mA Output Drive at 1.8 V

Unbuffered Output

Latch-Up Performance Exceeds 100 mA Per

ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)

– 200-V Machine Model (A115-A)

– 1000-V Charged-Device Model (C101)
