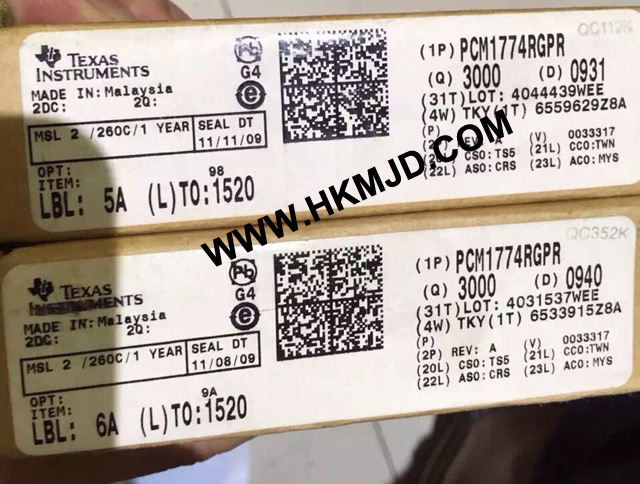

TI PCM1774 PCM1774RGPR Stereo Audio DAC Analog Mixing

Description


Features

Analog Front End:

Stereo Single-Ended Input

Microphone Amplifier (12 dB, 20 dB)

Analog Back End:

Stereo/Mono Line Output With Volume

Stereo/Mono Headphone Amplifier With Volume

Analog Performance:

Dynamic Range: 93 dB

40-mW + 40-mW Headphone Output at RL = 16 Ω

Power Supply Voltage

1.71 V to 3.6 V for Digital I/O Section

1.71 V to 3.6 V for Digital Core Section

2.4 V to 3.6 V for Analog Section

2.4 V to 3.6 V for Power Amplifier Section

 APPLICATIONS

Portable Audio Player, Cellular Phone

Video Camcorder, Digital Still Camera

PMP/DMB/PND
