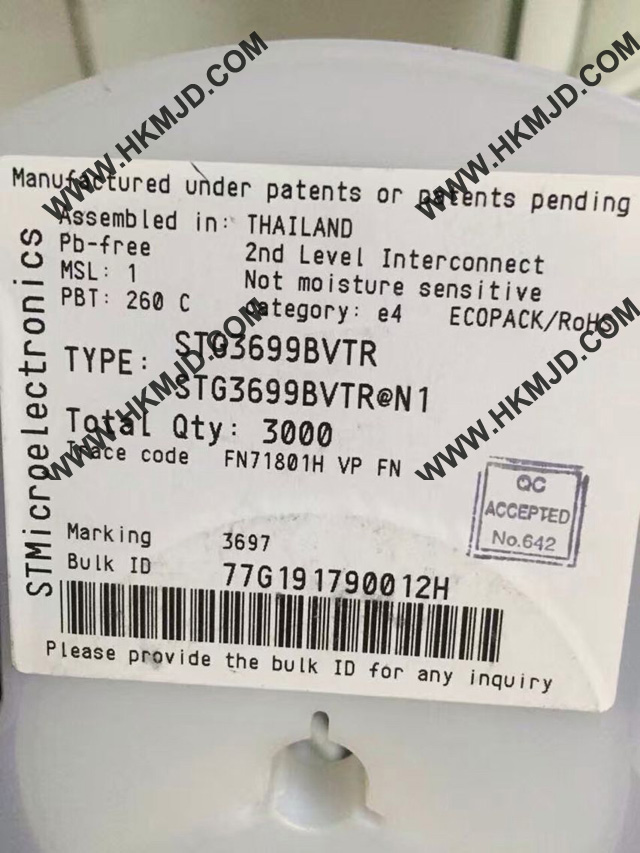

ST STG3699 STG3699BVTR Low Voltage 0.5Ω Max Quad SPDT Switch

Features


High speed:

– tPD = 1.5ns (TYP.) at VCC = 3.0V

– tPD = 1.5ns (TYP.) at VCC = 2.3V

Ultra low power dissipation:

– ICC = 0.2µA (MAX.) at TA = 85°C

Low "ON" Resistance VIN=0V:

– RON = 0.50Ω(MAX. TA = 25°C)at VCC=4.3V

– RON = 0.55Ω(MAX. TA = 25°C)at VCC=3.0V

– RON = 0.55Ω(MAX. TA = 25°C)at VCC=2.7V

Wide operanding voltage range:

– VCC (OPR) = 1.65V to 4.3V Single supply

4.3V Tolerant and1.8V compatible thresholds

on digital control input at VCC = 2.3 to 3.0V

Latch-up performance exceed 300mA

(JESD 17)

ESD performance (analog chan. Vs. GND):

HBM > 2kV (MIL STD 883 method 3015)
