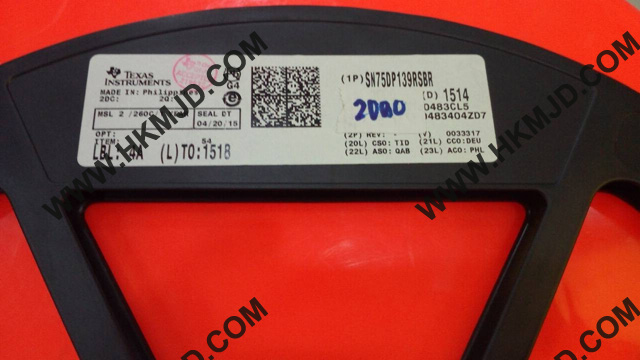

TI SN75DP139 SN75DP139RSBR DisplayPort to TMDS Level-Shifting Re-Driver

Features


DisplayPort Physical Layer Input Port to TMDS

Physical Layer Output Port

Integrated TMDS Level-Shifting Re-driver With

Receiver Equalization

Supports Data Rates up to 3.4 Gbps

Achieves HDMI 1.4b Compliance

3D HDMI Support With TMDS Clock Rates up to 340 MHz

4k × 2k Operation (30 Hz, 24bpp)

Deep Color Supporting 36bpp

Enhanced ESD: 10 kV on All Pins

Enhanced Commercial Temperature Range: 0°C

 to 85°C
