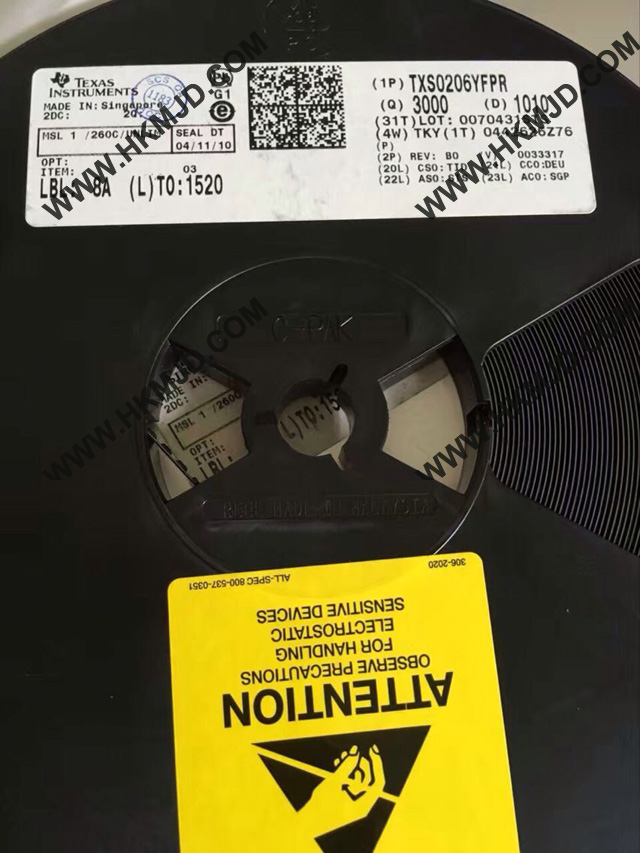

TI TXS0206 TXS0206YFPR VOLTAGE TRANSLATION TRANSCEIVER

Features


FEATURES

 Level Translator

– VCCA and VCCB Range of 1.1 V to 3.6 V

– Fast Propagation Delay (4 ns Max When

Translating Between 1.8 V and 3 V)

 Integrated EMI Filtering and ESD Protection Circuitry

ESD Protection Exceeds JESD 22 (A Port)

– 2500-V Human-Body Model (A114-B)

– 250-V Machine Model (A115-A)

– 1500-V Charged-Device Model (C101)

±8-kV Contact Discharge IEC 61000-4-2 ESD (B-port)

Category

Integrated Circuits (ICs)

Family

Logic - Translators, Level Shifters

Manufacturer

Texas-Instruments

Series

-

Packaging

Tape & Reel (TR)

Translator Type

Voltage Level

Channel Type

Bidirectional

Number of Circuits

1

Channels per Circuit

4

Voltage - VCCA

1.1 V ~ 3.6 V

Voltage - VCCB

1.1 V ~ 3.6 V

Input Signal

-

Output Signal

-

Output Type

Open Drain

Data Rate

60Mbps

Operating Temperature

-40°C ~ 85°C (TA)

Features

SIM Card Interface

Mounting Type

Surface Mount

Package / Case

20-XFBGA, DSBGA

Supplier Device Package

20-DSBGA (1.96x1.56)
