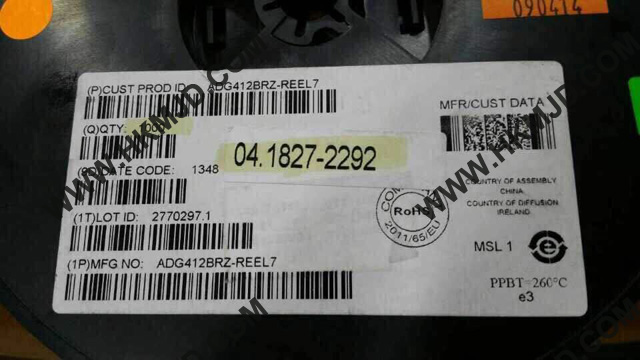

AD ADG412 ADG412BRZ Precision Quad SPST Switches

Features


FEATURES

44 V supply maximum ratings

±15 V analog signal range

Low on resistance (< 35 Ω)

Ultralow power dissipation (35 μW)

Fast switching times

tON < 175 ns

tOFF < 145 ns

TTL-/CMOS-compatible

Plug-in replacement for DG411/DG412/DG413

APPLICATIONS

Audio and video switching

Automatic test equipment

Precision data acquisition

Battery-powered systems

Sample-and-hold systems

Communication systems
