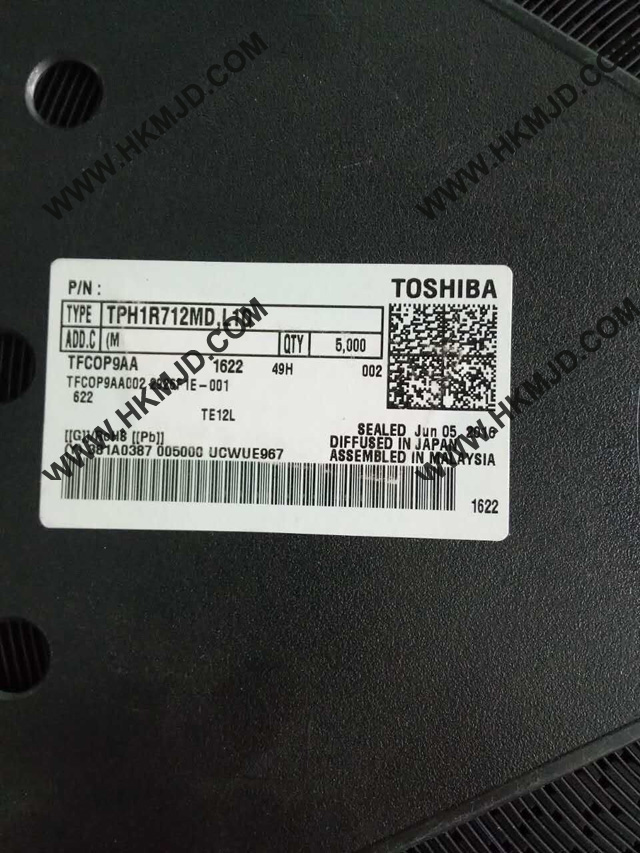

TOSHIBA TPH1R712MD MOSFET P-Channel Mosfet 20V

Features


FEATURES

Product Category:    MOSFET

RoHS:   RoHS Compliant Details

Technology: Si

Mounting Style:  SMD/SMT

Package / Case: SOP-8

Number of Channels:     1 Channel

Transistor Polarity:   P-Channel

Vds - Drain-Source Breakdown Voltage:    - 20 V

Id - Continuous Drain Current:     - 60 A

Rds On - Drain-Source Resistance:     1.35 mOhms

Vgs - Gate-Source Voltage:   12 V

Qg - Gate Charge:    182 nC

Packaging:   Reel

Channel Mode:   Enhancement

Fall Time:    27 ns

Height:  0.95 mm

Length: 5 mm

Pd - Power Dissipation:   78 W

Rise Time:   14 ns

Series:  TPH1R712MD

Factory Pack Quantity:   5000

Typical Turn-Off Delay Time: 1620 ns

Typical Turn-On Delay Time: 27 ns

Width:   5 mm
