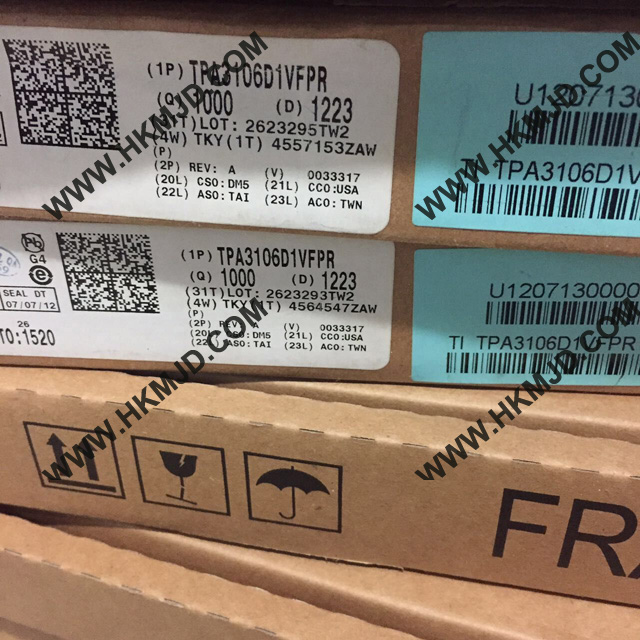

TI TPA3106 TPA3106D1VFPR Audio Amplifiers 40W Class-D Audio

Features


FEATURES

Product Category:    Audio Amplifiers

Manufacturer:    Texas Instruments

RoHS:   RoHS Compliant Details

Product:      Audio Amplifiers

Class:   Class-D

Output Power:   40 W

Mounting Style:  SMD/SMT

Type:   1-Channel Mono

Package / Case: HLQFP-32

Audio - Load Impedance:     8 Ohm

THD plus Noise: 0.2 %

Supply Voltage - Max:    26 V

Supply Voltage - Min:     10 V

Maximum Operating Temperature:    + 85 C

Packaging:   Reel

Brand:   Texas Instruments

Description/Function:     Speaker

Development Kit:     TPA3106D1EVM

Gain:    36 dB

Height:  1.4 mm

Input Type: Differential

Length: 7 mm

Minimum Operating Temperature:     - 40 C

Number of Channels:     1 Channel

Operating Supply Current:     10 mA

Operating Supply Voltage:    12 V, 15 V, 18 V, 24 V

Output Signal Type: Differential

Output Type:    1-Channel Mono

Pd - Power Dissipation:   3570 mW

PSRR - Power Supply Rejection Ratio: 70 dB

Series:  TPA3106D1

Factory Pack Quantity:   1000

Supply Type:     Single

Width:   7 mm

Unit Weight: 0.006300 oz
