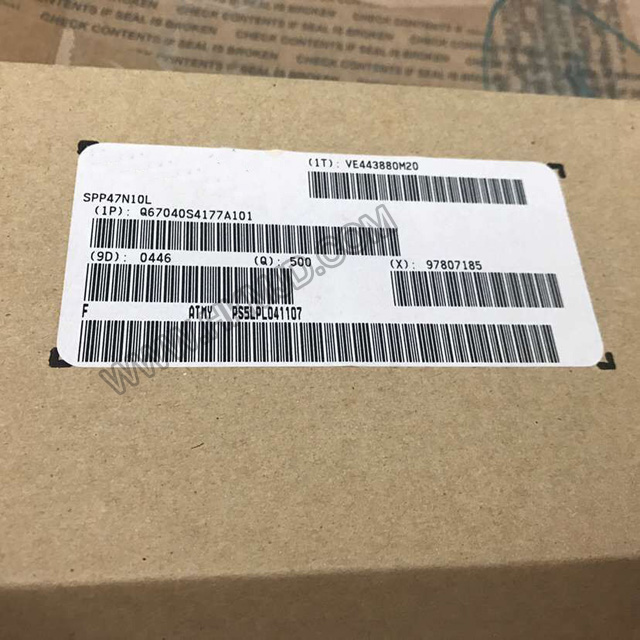

SPP47N10L Power Transistor

Features


FEATURES

Product Category:    MOSFET

Manufacturer:    Infineon

Technology: Si

Mounting Style:  Through Hole

Package / Case: TO-220-3

Number of Channels:     1 Channel

Transistor Polarity:   N-Channel

Vds - Drain-Source Breakdown Voltage:    100 V

Id - Continuous Drain Current:     47 A

Rds On - Drain-Source Resistance:     26 mOhms

Vgs - Gate-Source Voltage:   20 V

Maximum Operating Temperature:    + 175 C

Packaging:   Tube

Channel Mode:   Enhancement

Brand:   Infineon Technologies

Configuration:    Single

Fall Time:    70 ns

Height:  9.25 mm

Length: 10 mm

Minimum Operating Temperature:     - 55 C

Pd - Power Dissipation:   175 W

Rise Time:   100 ns

Transistor Type: 1 N-Channel

Typical Turn-Off Delay Time: 50 ns

Typical Turn-On Delay Time: 50 ns

Width:   4.4 mm

Unit Weight: 0.211644 oz

Applications

MOSFET
