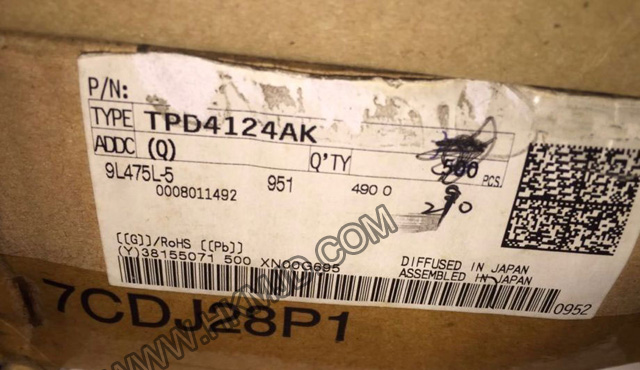

TPD4124AK High Voltage Monolithic Silicon Power IC

Features


FEATURES

High voltage power side and low voltage signal side terminal are separated.

It is the best for current sensing in three shunt resistance.

Bootstrap circuit gives simple high-side supply.

Bootstrap diodes are built in.

A dead time can be set as a minimum of 1.4 μs, and it is suitable for a Sine-wave from drive.

3-phase bridge output using IGBTs.

FRDs are built in.

Included under voltage protection and thermal shutdown.

The regulator of 7 V (typ.) is built in.

Package: 26-pin DIP

Applications

DC brush less motor
