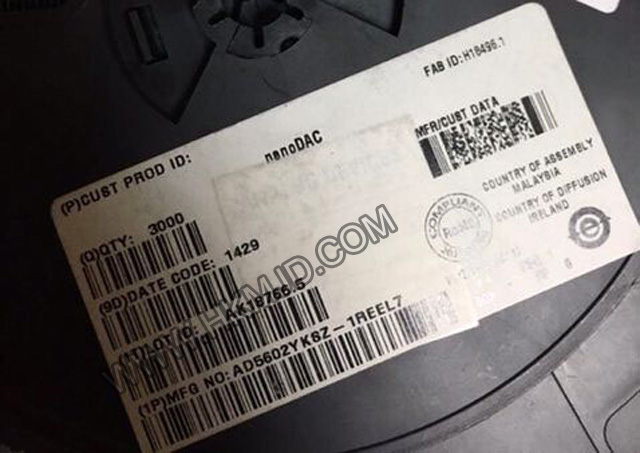

AD5602 AD5602YKSZ-1REEL7 AD5602YKSZ-1500RL7 nanoDACs with I2C Compatible Interface

Features


FEATURES

Single 8-, 10-, 12-bit DACs, 2 LSB INL

6-lead LFCSP and SC70 packages

Micropower operation: 100 μA maximum at 5 V

Power down to <150 nA at 3 V

2.7 V to 5.5 V power supply

Guaranteed monotonic by design

Power-on reset to 0 V with brownout detection

3 power-down functions

I2C compatible serial interface supports standard (100 kHz),

fast (400 kHz), and high speed (3.4 MHz) modes

On-chip output buffer amplifier, rail-to-rail operation

Qualified for automotive applications

Applications

Process control

Data acquisition systems

Portable battery-powered instruments

Digital gain and offset adjustment

Programmable voltage and current sources

Programmable attenuators
