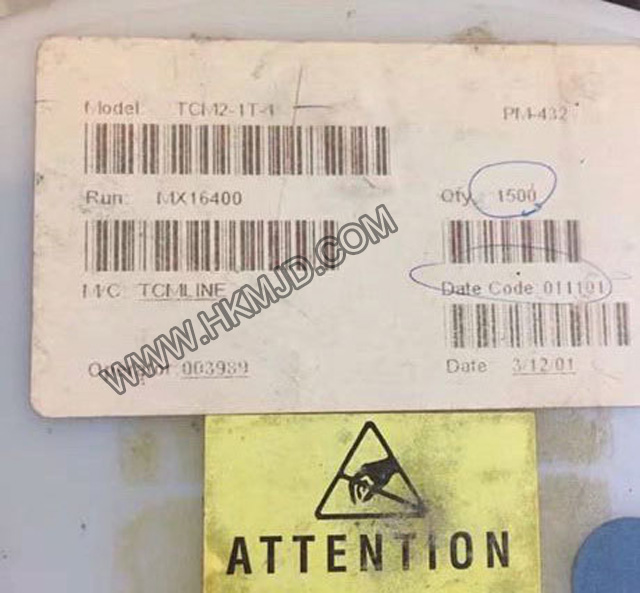

TCM2-1T+ TCM2-1T RF Transformer 50Ω 3 to 300 MHz

Features


FEATURES

• excellent amplitude unbalance. 0.2 dB typ.

• excellent phase unbalance, 4 deg. typ. in 1 dB bandwidth

• plastic base with solder plated leads

• aqueous washable

Operating Temperature -20°C to 85°C

Storage Temperature -55°C to 100°C

RF Power 0.25W

DC Current 30mA

Applications

• impedance matching

• balanced to unbalanced transformation

• push-pull amplifier
