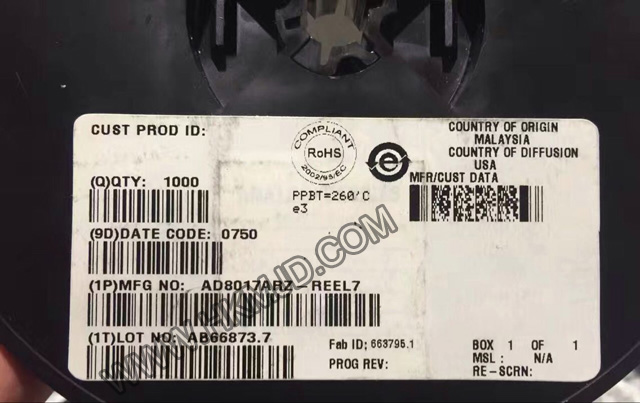

AD8017 AD8017ARZ Dual High Output Current High Speed Amplifier

Features


FEATURES

High Output Drive Capability

20 V p-p Differential Output Voltage, RL = 50

10 V p-p Single-Ended Output Voltage While

Delivering 200 mA to a 25  Load

Low Power Operation

5 V to 12 V Voltage Supply @ 7 mA/Amplifier

Low Distortion

–78 dBc @ 500 kHz SFDR, RL = 100 , VO = 2 V p-p

–58 dBc Highest Harmonic @ 1 MHz, IO = 270 mA(RL = 10 )

High Speed

160 MHz, –3 dB Bandwidth (G = +2)

1600 V/s Slew Rate

APPLICATIONS

xDSL PCI Cards

Consumer DSL Modems

Line Driver

Video Distribution
