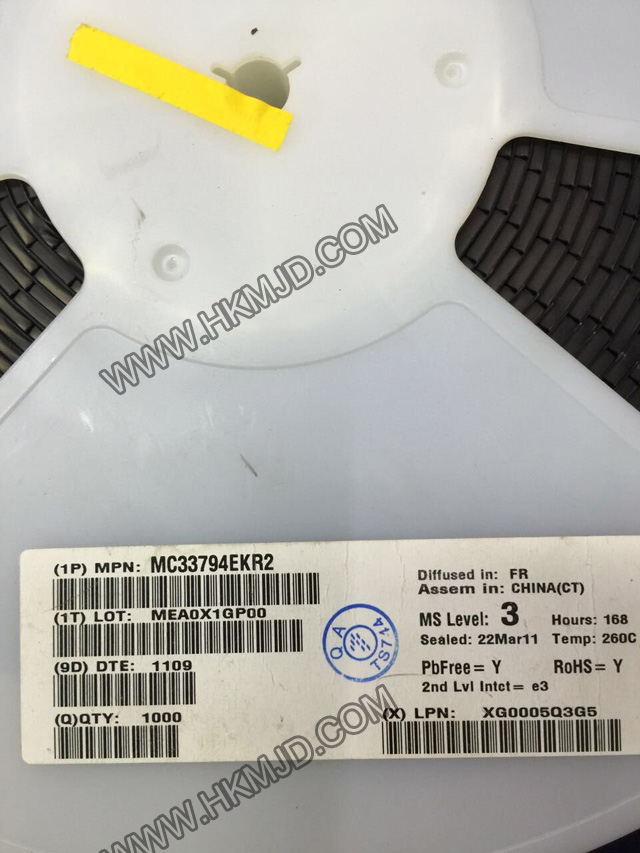

MC33794 MC33794EKR2 Proximity Sensors ODS 54LD

Features


Features

Supports up to 9 Electrodes and 2 References or Electrodes

Shield Driver for Driving Remote Electrodes Through Coaxial Cables

+5.0 V Regulator to Power External Circuit

ISO-9141 Physical Layer Interface

Lamp Driver Output

Watchdog and Power-ON Reset Timer

Critical Internal Nodes Scaled and Selectable for Measurement

High-Purity Sine Wave Generator Tunable with External Resistor

Typical Applications

Occupant Detection Systems

Appliance Control Panels and Touch Sensors

Linear and Rotational Sliders

Spill Over Flow Sensing Measurement

Refrigeration Frost Sensing

Industrial Control and Safety Systems Security

Proximity Detection for Wake-Up Features

Touch Screens

Garage Door Safety Sensing

Liquid Level Sensing
