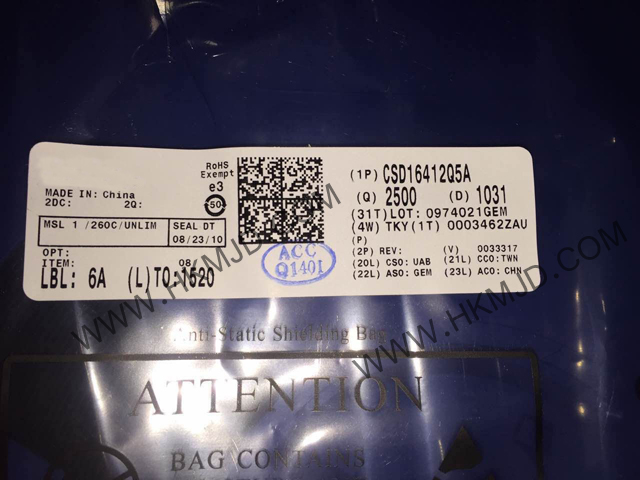

CSD16412 CSD16412Q5A MOSFET N-CH 25V 52A 8-SON

Features


Features

Part Status  Active

FET Type    N-Channel

Technology MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)    25V

Current - Continuous Drain (Id) @ 25°C   14A (Ta), 52A (Tc)

Drive Voltage (Max Rds On, Min Rds On)  4.5V, 10V

Vgs(th) (Max) @ Id  2.3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs   3.8nC @ 4.5V

Input Capacitance (Ciss) (Max) @ Vds     530pF @ 12.5V

Vgs (Max)   +16V, -12V

Power Dissipation (Max) 3W (Ta)

Rds On (Max) @ Id, Vgs 11 mOhm @ 10A, 10V

Operating Temperature  -55°C ~ 150°C (TJ)

Mounting Type  Surface Mount

Application

Point-of-Load Synchronous Buck Converter

for Applications in Networking, Telecom and Computing SystemsS

TA = 25°C unless otherwise stated VALUE UNIT

Optimized for Control FET Applications
