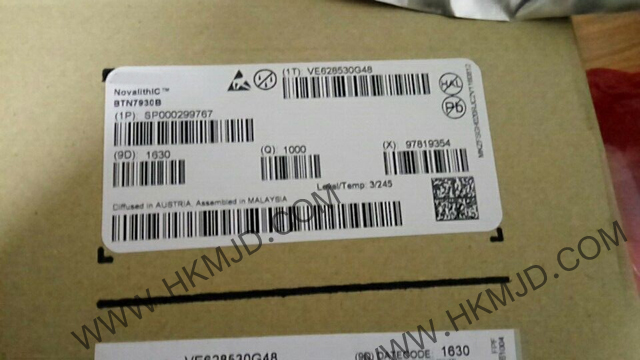

Motor Driver IC BTN7930B BTN7930

Details


FEATURES

Path resistance of max.

High Side: max. 17 m

Low Side: max. 38 m(for BTN7930B (SMD)

Low quiescent current of typ

PWM capability of up to 25 kHz combined with active freewheeling

Switched mode current limitation for reduced power dissipation in overcurrent

Current limitation level of 20 A min. / 32 A typ. (low side)

Status flag diagnosis with current sense capability

Overtemperature shut down with latch behaviour

Overvoltage lock out

Undervoltage shut down

Driver circuit with logic level inputs

Adjustable slew rates for optimized EMI

Green Product (RoHS compliant)

AEC Qualified
