Manufacturer Part |
|

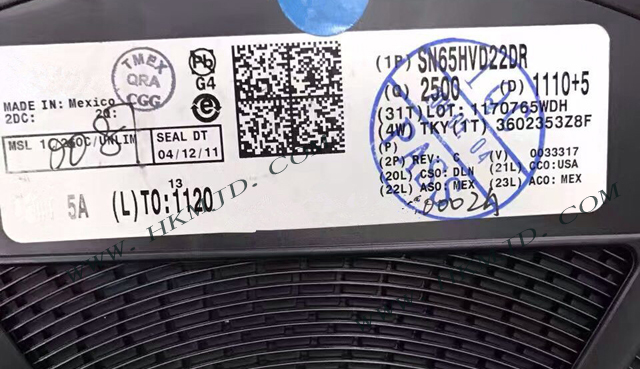

IC TXRX RS485 EXT MODE 8-SOIC 1/1 Transceiver Half RS422, RS485 8-SOIC |
|
Long Cable Solutions Factory Automation Security Networks Building HVAC Severe Electrical Environments Electrical Power Inverters Industrial Drives Avionics |
|
Datasheet |
Details |
FEATURES Common-Mode Voltage Range (–20 V to 25 V)More Than Doubles TIA/EIA-485 Requirement Receiver Equalization Extends Cable Length, Signaling Rate (SN65HVD2[3,4]) Reduced Unit-Load for up to 256 Nodes Bus I/O Protection to Over 16-kV HBM Failsafe Receiver for Open-Circuit, Short-Circuit,and Idle-Bus Conditions Low Standby Supply Current 1 µA (Maximum) More Than 100 mV Receiver Hysteresis The transceivers in the SN65HVD2x family offer performance far exceeding typical RS-485 devices. In addition to meeting all requirements of the TIA/EIA‑485-A standard. |
