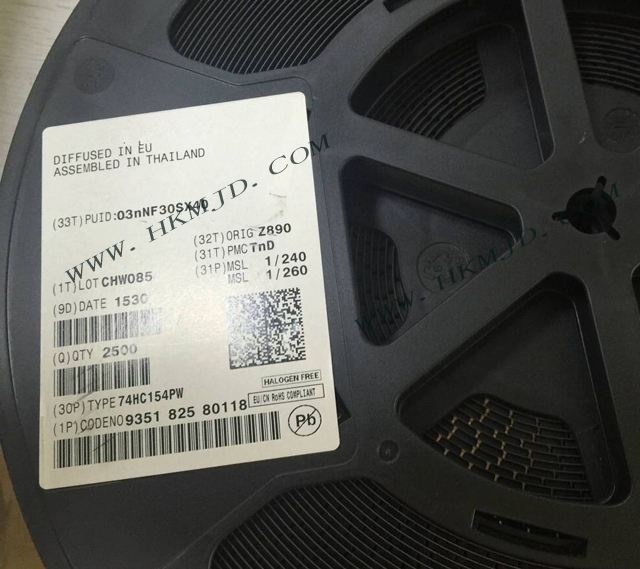

74HC154 74HC154PW high-speed Si-gate CMOS device



Manufacturer

NXP Semiconductors

Manufacturer Part

74HC154PW

Description

Encoders, Decoders, Multiplexers & Demultiplexers 4-16 DECODER/DEMUX

Application

16-line demultiplexing capability

Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs

Complies with JEDEC standard no. 7A

Specified from −40 °C to +85 °C and −40 °C to +125 °C

ESD protection:

HBM EIA/JESD22-A114D exceeds 2000 V

MM EIA/JESD22-A115-A exceeds 200 V

Datasheet

74HC154

Details




Product Category:Encoders, Decoders, Multiplexers & Demultiplexers

Manufacturer:Nexperia

RoHS:   RoHS Compliant Details

Product:Decoders / Demultiplexers

Logic Family:HC

Supply Voltage - Max:    6 V

Supply Voltage - Min:     2 V

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 125 C

Mounting Style:SMD/SMT

Package / Case:SOT-355

Brand:   Nexperia

Function:Decoder/Demultiplexer

Height:  0.95 mm

High Level Output Current:- 5.2 mA

Length:7.9 mm

Logic Type:CMOS

Low Level Output Current:5.2 mA

Number of Circuits:1 Circuit

Operating Supply Voltage:5 V

Factory Pack Quantity:63

Supply Current - Max:     0.16 mA

Technology:CMOS

Width:   4.5 mm

Part # Aliases:   74HC154PW,112



The 74HC154; 74HCT154 is a high-speed Si-gate CMOS device and is pin compatible

with Low-power Schottky TTL (LSTTL).
