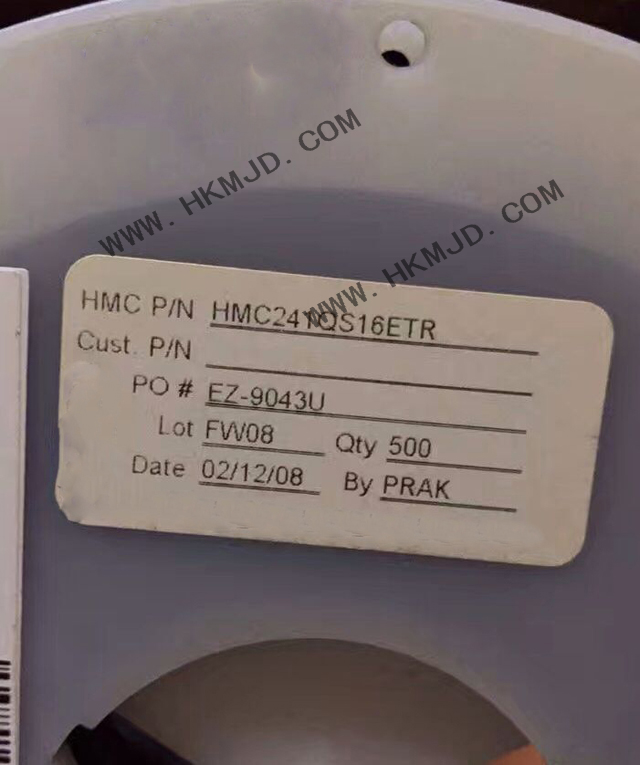

HMC241QS16E HMC241QS16ETR SP4T Non-Reflective Switch IC

Details


FEATURES

High Isolation: 43 dB @ 2 GHz

Low Insertion Loss: 0.7 dB @ 2 GHz

Single Positive Supply: Vdd = +5V

Integrated 2:4 TTL Decoder

16 Lead 3x3mm SMT Package: 9mm²

The HMC241ALP3E is a general purpose nonreflective SP4T switch in a low cost leadless surface mount package. Covering DC - 4 GHz, this switch offers high isolation and has a low insertion loss of 0.7 dB at 2 GHz. The switch offers a single positive bias and true TTL/CMOS compatibility. A 2:4 decoder is integrated on the switch requiring only 2 control lines and a positive bias to select each path, replacing 4 to 8 control lines normally required by GaAs SP4T switches.
