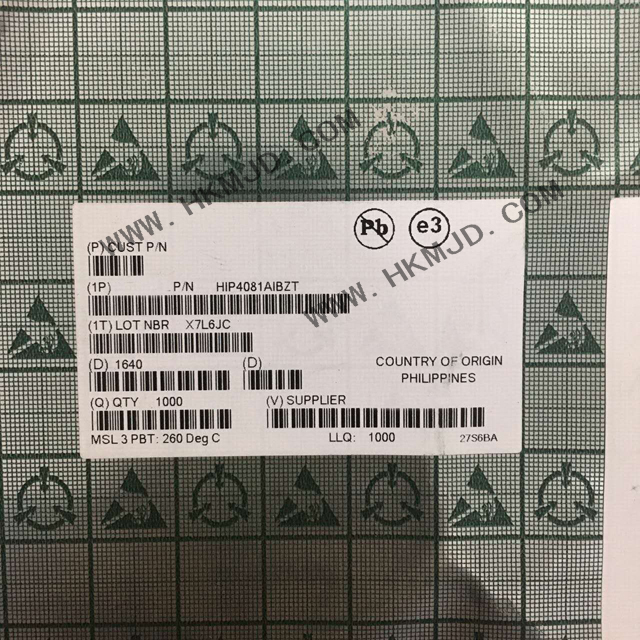

HIP4081A HIP4081AIBZ medium voltage Full Bridge N-Channel FET driver IC

Details


FEATURES

• Independently Drives 4 N-Channel FET in Half Bridge or Full Bridge Configurations

• Bootstrap Supply Max Voltage to 95VDC

• Drives 1000pF Load at 1MHz in Free Air at 50°C with Rise and Fall Times of Typically 10ns

• User-Programmable Dead Time

• On-Chip Charge-Pump and Bootstrap Upper Bias Supplies

• DIS (Disable) Overrides Input Control

• Input Logic Thresholds Compatible with 5V to 15V Logic Levels

• Very Low Power Consumption

• Undervoltage Protection

• Pb-free Available

The HIP4081A is a high frequency, medium voltage Full Bridge N-Channel FET driver IC, available in 20 lead plastic SOIC and DIP packages. The HIP4081A can drive every possible switch combination except those which would cause a shoot-through condition. The HIP4081A can switch at frequencies up to 1MHz and is well suited to driving Voice Coil Motors, high-frequency switching power amplifiers, and power supplies.
