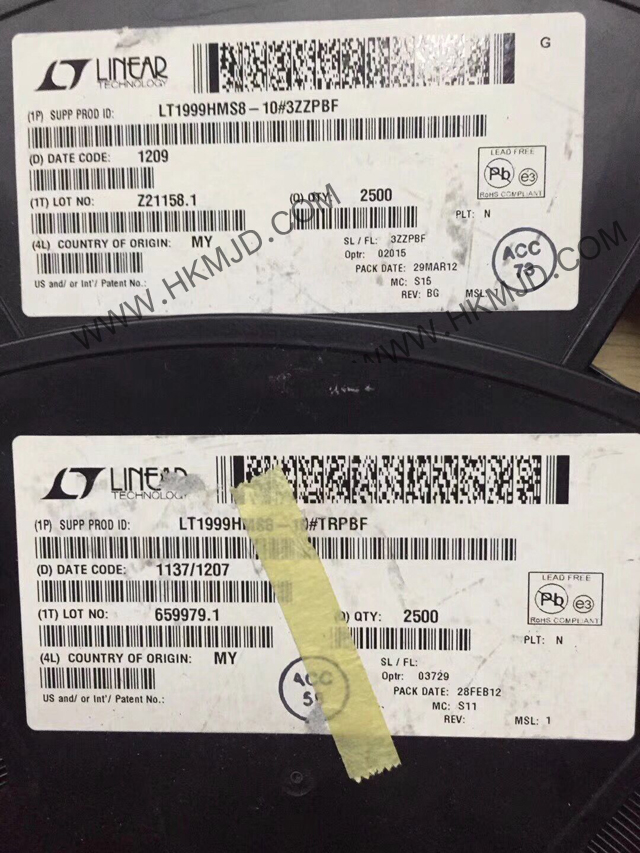

LT1999HMS8-10 Linear Amplifiers Instrumentation IC

Details


Features

Buffered Output with 3 Gain Options:10V/V, 20V/V, 50V/V

Gain Accuracy: 0.5% Max

Input Common Mode Voltage Range: –5V to 80V

AC CMRR > 80dB at 100kHz

Input Offset Voltage: 1.5mV Max

–3dB Bandwidth: 2MHz

Smooth, Continuous Operation Over Entire Common Mode Range

4kV HBM Tolerant and 1kV CDM Tolerant

Low Power Shutdown <10µA

–55°C to 150°C Operating Temperature Range

8-Lead MSOP and 8-Lead SO (Narrow) Packages

8-Lead MSOP Pinout Option Engineered for FMEA

The LT®1999 is a high speed precision current sense amplifier,designed to monitor bidirectional currents over a wide common mode range. The LT1999 is offered in three gain options: 10V/V, 20V/V, and 50V/V.
