IGBT Transistors POWER MOSFET NTLUD3A260PZ NTLUD3A260PZTAG

Manufacturer	ON Semiconductor

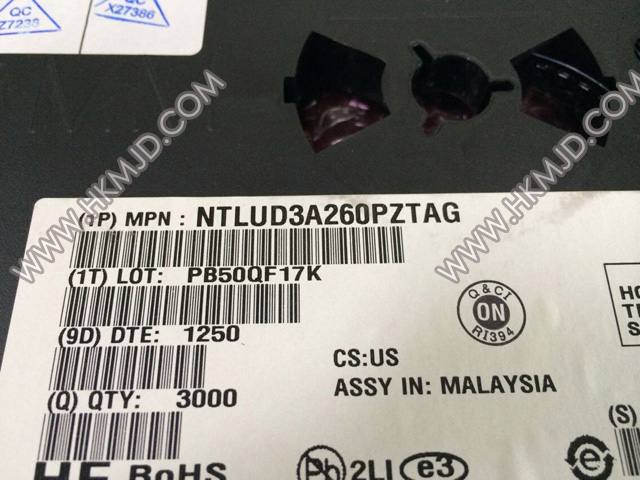

Manufacturer Part	NTLUD3A260PZTAG
Description	MOSFET 2P-CH 20V 1.3A UDFN6 Mosfet Array 2 P-Channel (Dual) 20V 1.3A 500mW Surface Mount 6-UDFN (1.6x1.6)
Application	High Side Load Switch PA Switch Optimized for Power Management Applications for Portable Products, such as Cell Phones, PMP, DSC, GPS, and others
Datasheet	NTLUD3A260PZ

Details


Features

UDFN Package with Exposed Drain Pads for Excellent Thermal Conduction

Low Profile UDFN 1.6x1.6x0.55 mm for Board Space Saving

ESD Protected

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Product Category:IGBT Transistors

Manufacturer:ON Semiconductor

RoHS:RoHS Compliant Details

Package / Case:UDFN-6

Mounting Style:SMD/SMT

Configuration:Dual

Pd - Power Dissipation:0.8 W

Minimum Operating Temperature:- 55 C

Maximum Operating Temperature:+ 150 C

Series: NTLUD3A260P

Packaging:Cut Tape

Packaging:MouseReel

Packaging:Reel

Brand:ON Semiconductor

Factory Pack Quantity:3000

Technology:Si
