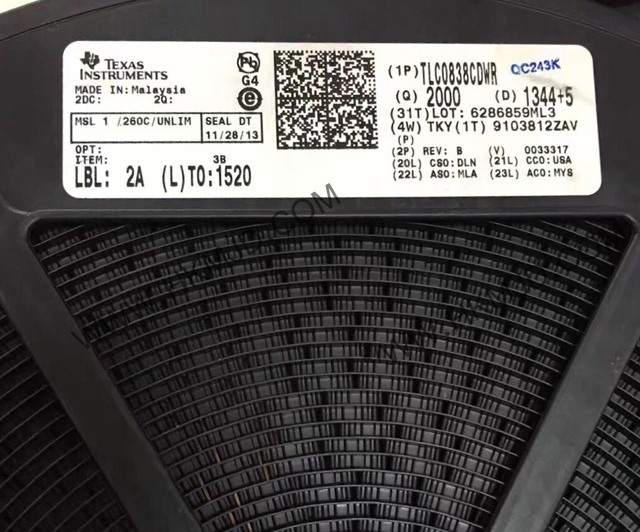

TLC0838C TLC0838CDWR Analog to Digital Converters

Details


Product Category:Analog to Digital Converters - ADC

Manufacturer:Texas Instruments

RoHS:RoHS Compliant Details

Series:TLC0838

Mounting Style:SMD/SMT

Package / Case:SOIC-20

Resolution:8 bit

Number of Channels:8 Channel

Sampling Rate:20 kS/s

Input Type:Differential/Single-Ended

Interface Type:Serial

Architecture:SAR

Reference Type:External

Analog Supply Voltage:4.5 V to 5.5 V

Digital Supply Voltage:4.5 V to 5.5 V

Maximum Operating Temperature:+ 85 C

Minimum Operating Temperature:- 40 C

Packaging:MouseReel

Packaging:Reel

Packaging:Cut Tape

Brand:Texas Instruments

DNL - Differential Nonlinearity:+/- 0.4 LSB

Height:  2.35 mm

INL - Integral Nonlinearity:+/- 0.4 LSB

Length:12.8 mm

Number of Converters:1 Converter

Operating Supply Voltage:4.5 V to 5.5 V

Power Consumption:3 mW

Product:Analog to Digital Converters

Factory Pack Quantity:2000

Width:7.52 mm

These devices are 8-bit successive- approximation analog-to-digital converters, each with an input-configurable multichannel multiplexer and serial input/output.
