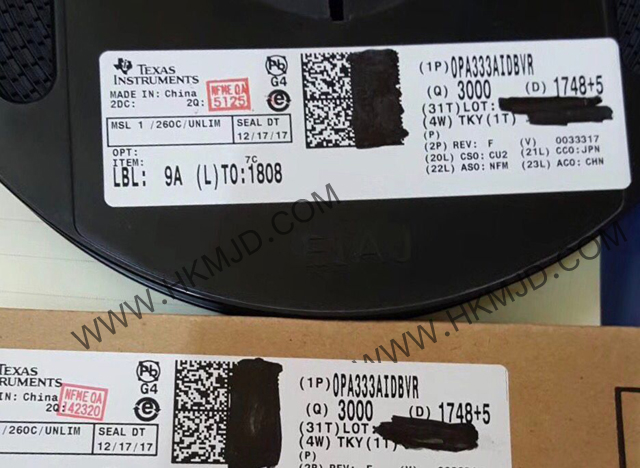

OPA333 OPA333AIDBVR Operational Amplifier IC

Details


Mounting Style: SMD/SMT

Package / Case: SOT-23-5

Supply Voltage - Max: 5.5 V

Output Current per Channel: 5 mA

Number of Channels: 1 Channel

GBP - Gain Bandwidth Product: 350 kHz

SR - Slew Rate: 0.16 V/us

CMRR - Common Mode Rejection Ratio: 106 dB to 130 dB

Ib - Input Bias Current: 200 pA

Vos - Input Offset Voltage: 0.01 mV

Supply Voltage - Min: 1.8 V

Operating Supply Current: 17 uA

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 125 C

Shutdown: No Shutdown

Series: OPA333

Packaging: Cut Tape

Packaging: MouseReel

Packaging: Reel

Amplifier Type: Low Offset Voltage Amplifier

Features: EMI Hardened, Small Size, Zero Drift

Height: 1.15 mm

Input Type: Rail-to-Rail

Length: 2.9 mm

Output Type: Rail-to-Rail

Product: Operational Amplifiers

Supply Type: Single, Dual

Technology: CMOS

Width: 1.6 mm

Brand: Texas Instruments

In - Input Noise Current Density: 0.1 pA/sqrt Hz

Maximum Dual Supply Voltage: +/- 2.75 V

Minimum Dual Supply Voltage: +/- 0.9 V

Operating Supply Voltage: 1.8 V to 5.5 V, +/- 0.9 V to +/- 2.75 V

PSRR - Power Supply Rejection Ratio: 120 dB

Factory Pack Quantity: 3000
