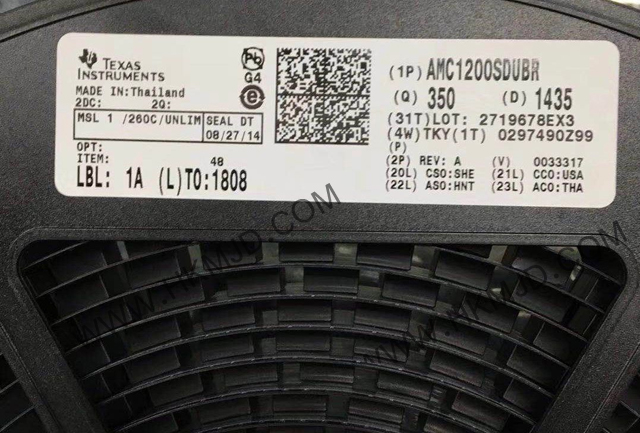

AMC1200 AMC1200SDUBR IC Amplifiers Instrumentation

Details


Manufacturer: Texas Instruments

Product Category: Isolation Amplifiers

RoHS:  Details

Series: AMC1200

Number of Channels: 1 Channel

Isolation Voltage: 4000 Vrms

Isolation Type: Galvanic

GBP - Gain Bandwidth Product: -

3 dB Bandwidth: 100 kHz

CMRR - Common Mode Rejection Ratio: 108 dB

Vos - Input Offset Voltage: 200 uV

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V, 4.5 V

Operating Supply Current: 5.4 mA

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 105 C

Mounting Style: SMD/SMT

Package / Case: SOP-8

Packaging: Cut Tape

Packaging: MouseReel

Packaging: Reel

Amplifier Type: Isolation

Output Type: Differential

Product: Isolation Amplifiers

Brand: Texas Instruments

Input Voltage Range - Max: +/- 320 mV

Shutdown: No Shutdown

Development Kit: AMC1200EVM

Gain Error: 0.075 %

Gain V/V: 8 V/V

Moisture Sensitive: Yes

NumOfPackaging: 3

Operating Supply Voltage: 2.7 V to 5.5 V

Output Current per Channel: 20 mA

Pd - Power Dissipation: 44 mW

PSRR - Power Supply Rejection Ratio: 61 dB

SR - Slew Rate: -

Factory Pack Quantity: 350
