TB6633AFNG 3-Phase Full-Wave PWM Driver for Sensorless DC Motors

Details


Manufacturer: Toshiba

Product Category: Motor / Motion / Ignition Controllers & Drivers

Product: Brushless DC Motor Controllers

Type: 3 Phase BLDC Motor Controller

Operating Supply Voltage: 4.5 V to 22 V

Output Current: 1 A

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 85 C

Mounting Style: SMD/SMT

Package / Case: SSOP-24

Packaging: Cut Tape

Packaging: Mouse Reel

Packaging: Reel

Operating Temperature Range: - 40 C to + 85 C

Series: TB6633

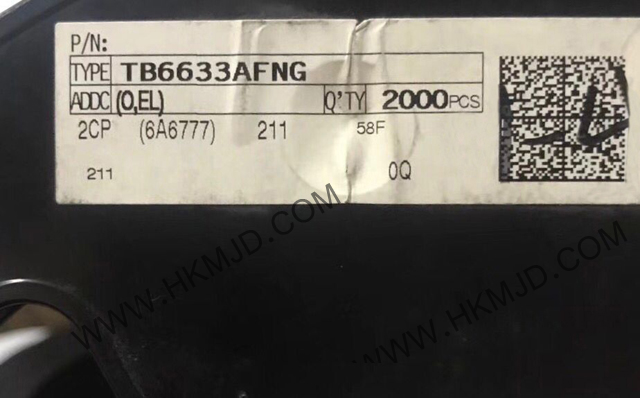

Factory Pack Quantity: 2000

The TB6633AFNG is a three-phase full-wave PWM driver for sensorless brushless DC (BLDC) motors. It controls motor rotation speed by changing the PWM duty cycle, based on the voltage of an analog control input.
