Manufacturer Part |
|

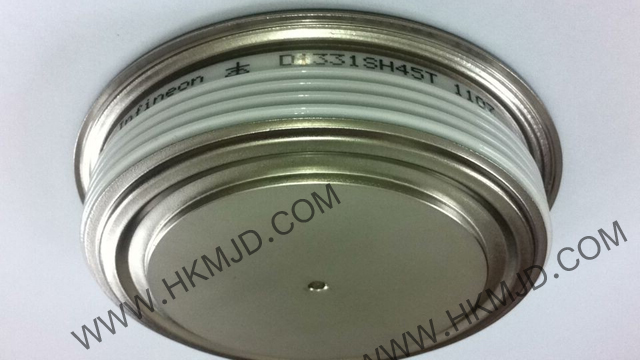

Diode Standard 4500V 1710A Chassis Mount |
|
Medium voltage converters Freewheeling Diode for IGCT applications Freewheeling Diode for IGBT applications Pulsed power applications |
|
Datasheet |
Details |
Key Parameters enndaten VRRM 4500 V IFAVM 1310 A (TC=85 °C) 3570A (TC=55°C) IFSM 28000 A VT0 2,13 V rT 0,948 mΩ RthJC 7,5 K/kW Clamping Force 36 … 52 kN Max. Diameter 121 mm Contact Diameter 86 mm Height 26 mm
Features Full blocking capability 50/60Hz over a wide temperature range High DC blocking stability High surge current capability High case non-rupture current Soft turn-off behavior at high turn-off di/dt |
