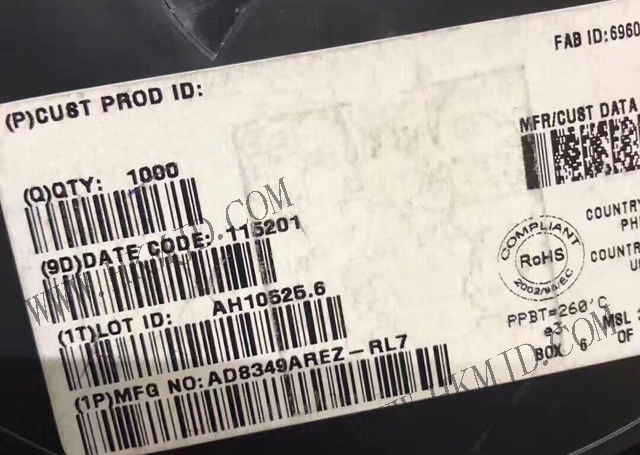

RF Modulator IC AD8349 AD8349AREZ 700MHz to 2700MHz Quadrature Modulator



Manufacturer

Analog Devices Inc.

Manufacturer Part

AD8349AREZ

Description

RF Modulator IC 700MHz ~ 2.7GHz 16-TSSOP (0.173", 4.40mm Width) Exposed Pad

Application

Cellular/PCS communication systems infrastructure

WCDMA/CDMA2000/PCS/GSM/EDGE

Wireless LAN/wireless local loop

LMDS/broadband wireless access systems

Datasheet

AD8349



Details




Manufacturer: Analog Devices Inc.

Product Category: Modulator / Demodulator

Type: Modulator

Operating Supply Voltage: 4.75 V to 5.5 V

Operating Supply Current: 135mA

Mounting Style: SMD/SMT

Package / Case: TSSOP-16

Height: 1 mm

Length: 5 mm

Packaging: Cut Tape

Packaging: Mouse Reel

Packaging: Reel

Series: AD8349

Width: 4.4 mm

Brand: Analog Devices

CNHTS: 8542319000

Development Kit: AD8349-EVALZ

HTS Code: 8542390001

MXHTS: 85423901

Product Type: Modulator / Demodulator

Factory Pack Quantity: 1000

Subcategory: Wireless & RF Integrated Circuits

TARIC: 8542399000



The AD8349 is a silicon, monolithic, RF quadrature modulator that is designed for use from 700MHz to 2700MHz. Its excellent phase accuracy and amplitude balance enable high performance direct RF modulation for communication systems.
