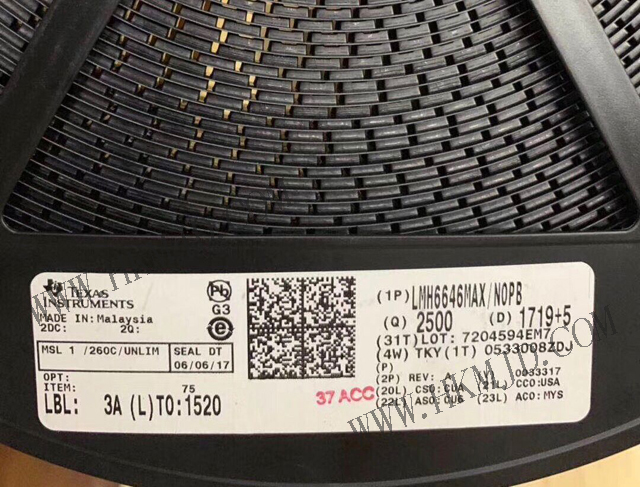

LMH6646 LMH6646MAX Rail-to-Rail Input and Output Amplifiers IC

Details


Features

VS = 2.7V, TA = 25°C, RL = 1kΩ to V+/2, AV = +1.Typical Values Unless Specified.

−3dB BW 55 MHz

Supply Voltage Range 2.5 V to 12 V

Slew Rate 22 V/μs

Supply Current 650 μA/channel

Output Short Circuit Current 42 mA

Linear Output Current ±20 mA

Input Common Mode Voltage 0.3 V Beyond Rails

Output Voltage Swing 20 mV from Rails

Input Voltage Noise 17 nV/√Hz

Input Current Noise 0.75 pA/√Hz
