ON《ESDR0502NMUTAG ESDR0502》ESD Suppressors

Manufacturer

ON Semiconductor

Manufacturer Part

ESDR0502NMUTAG

Description

ESD Suppressors / TVS Diodes LOW CAP TVS ARRAY

Application

High Speed Communication Line Protection

USB 2.0 High Speed Data Line and Power Line Protection

Monitors and Flat Panel Displays

MP3

Gigabit Ethernet

Datasheet

ESDR0502

Details


Product Category:ESD Suppressors / TVS Diodes

RoHS: Details

Product Type:ESD Suppressors

Polarity:Unidirectional

Working Voltage:5.5 V

Number of Channels:4 Channel

Termination Style:SMD/SMT

Package / Case:UDFN-6

Breakdown Voltage:6 V

Clamping Voltage:-

Pppm - Peak Pulse Power Dissipation:100 W

Vesd - Voltage ESD Contact:8 kV

Vesd - Voltage ESD Air Gap:-

Cd - Diode Capacitance:0.6 pF

Ipp - Peak Pulse Current:3 A

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 125 C

Series:ESDR0502N

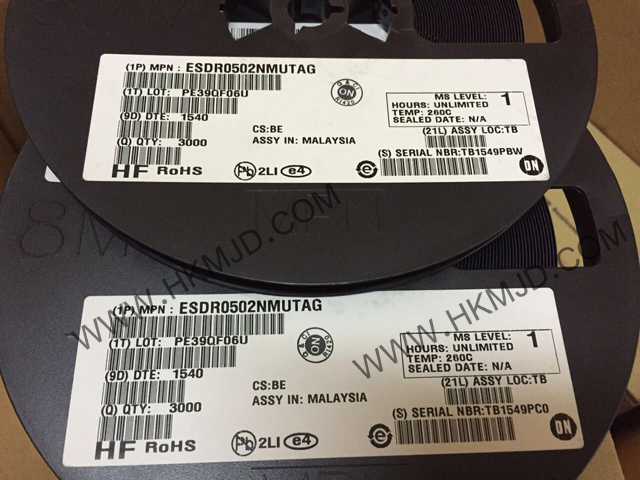

Packaging:Cut Tape

Packaging:MouseReel

Packaging:Reel

Brand:ON Semiconductor

Factory Pack Quantity:3000

Subcategory:TVS Diodes / ESD Suppression Diodes

PN：ESDR0502NMUTAG
