MPQ5031GRE MPQ5031GRE-0015-AEC1-Z USB PD Controller AEC-Q100 Compliant

 Mingjiada imported original supply MPQ5031GRE MPQ5031GRE-0015-AEC1-Z USB PD controller conforms to AEC-Q100 standard

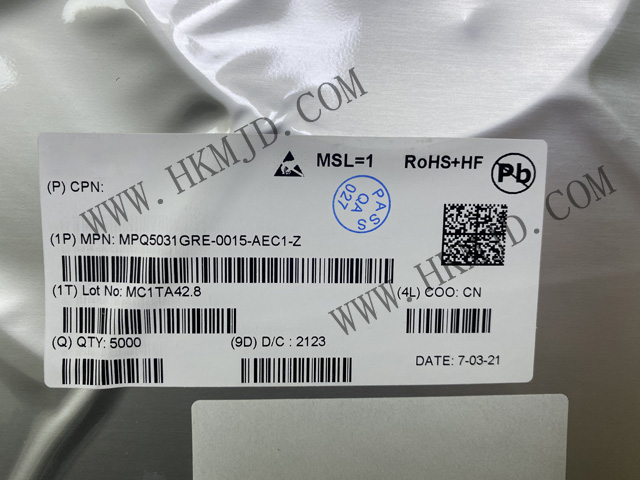

Model: MPQ5031GRE-0015-AEC1-Z

Year: 21+

Package: QFN

Description: Source-only single-port USB PD controller, AEC-Q100 qualified

The device is available in a QFN-20 (4mmx4mm) package with wettable sides.

Features and Benefits

Supports a bus voltage (V BUS ) range of 3.3V to 21V

4.6V to 5.5V VCC Supply Voltage (V CC ) Range

Integrated Physical Layer of BMC

Integrated protocol layer

Integrated Policy Engine

100μA Low Standby Quiescent Current (I Q )

Supports one USB Type-C DFP port with USB PD 3.0 and PPS

DCP scheme supporting BC1.2, 3A voltage divider and 1.2V/1.2V mode

Support QC3.0, Huawei FCP

VBUS Isolated N-Channel MOSFET Driver

CN off timer up to 120 minutes

I 2 C master/slave interface and interrupts

Load shedding with NTC or low battery detection

High Voltage Pins for CC1, CC2, DP and DM

Integrated high voltage VCONN power switch

60W USB-IF PPS certified with MPQ4230 (TID: 2313)

100W USB-IF PPS certified with MPQ4214 (TID: 2316)

Available in QFN-20 (4mmx4mm) package

Wettable side encapsulation available

Offers AEC-Q100 Grade 1
