Mingjiada supplies ST microcontroller STM32F072R8T6 32-bit microcontroller - MCU, absolutely original spot with real order price can be negotiated

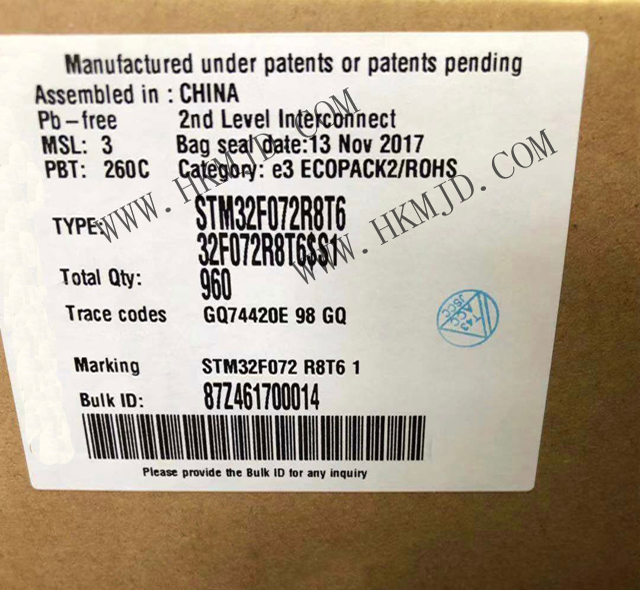

Model: STM32F072R8T6
Brand: ST
Lot number: 17+
Package: LQFP64
Describe
The STM32F072 microcontroller integrates a high-performance ARM® Cortex®-M0 32-bit RISC at frequencies up to 48MHz, high-speed core OS embedded memory (up to 128 KB Flash and 16 KB SRAM), and a wide range of enhanced external settings and I/O. All devices provide standard communication interfaces (two I2C, two SPI/I2S, one HDMI CEC and four USART), one USB full speed device (no crystal), 1 CAN, 1 12-bit ADC, 1 12-bit DAC and 2 channels, seven 16-bit timers, one 32-bit timer and one advanced control PWM timer.
The STM32F072 microcontroller operates over a temperature range of 2.0 to 3.6 V supply at temperatures from -40 to +85°C and -40 to +105°C. A comprehensive set of power-saving modes allows the design of low-power applications. Die leads are also available on request, including devices in 7 different packages from 48-pin to 100-pin. Depending on the device selected, different sets of peripherals are included. These features make the STM32F072x8/xB microcontrollers suitable for various applications such as application control and user interface, handheld devices, A/V receivers and digital TVs, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, Inverters, printers, scanners, alarm systems, video intercoms and HVAC.
Product Specifications
Core processor ARM® Cortex®-M0
Kernel Specification 32-bit
Speed 48MHz
Connectivity CANbus, HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals DMA, I²S, POR, PWM, WDT
Number of I/Os 51
Program storage capacity 64KB (64K x 8)
Program Memory Type Flash
EEPROM capacity -
RAM size 16K x 8
Voltage - Power Supply (Vcc/Vdd) 1.65V ~ 3.6V
Data Converter A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Operating temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package/Enclosure 64-LQFP
Vendor Device Package 64-LQFP (10x10)
