L293E |
|---|---|
| Product Photos | 20-DIP (300 MIL)(NARROW PDIP MDIP) SERIES |
| Other Related Documents | L293E View All Specifications |
| Standard Package | 20 |
| Category | Integrated Circuits (ICs) |
| Family | PMIC - Motor, Bridge Drivers |
| Series | - |
| Packaging | Tube |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge, (4) Quad |
| Interface | Parallel |
| Applications | General Purpose |
| Current - Output | 1A |
| Voltage - Supply | 4.5 V ~ 36 V |
| Voltage - Load | 4.5 V ~ 36 V |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PowerDIP |
L293E PUSH-PULL FOUR CHANNEL DRIVERS
L293E : Specification
The L293B and L293E are quad push-pull drivers capable of delivering output currents to 1A per channel. Each channel is controlled by a TTL-compatible logic input and each pair of drivers (a full bridge) is equipped with an inhibit input which turns off all four transistors. A separate supply input is provided for the logic so that it may be run off a lower voltage to reduce dissipation.

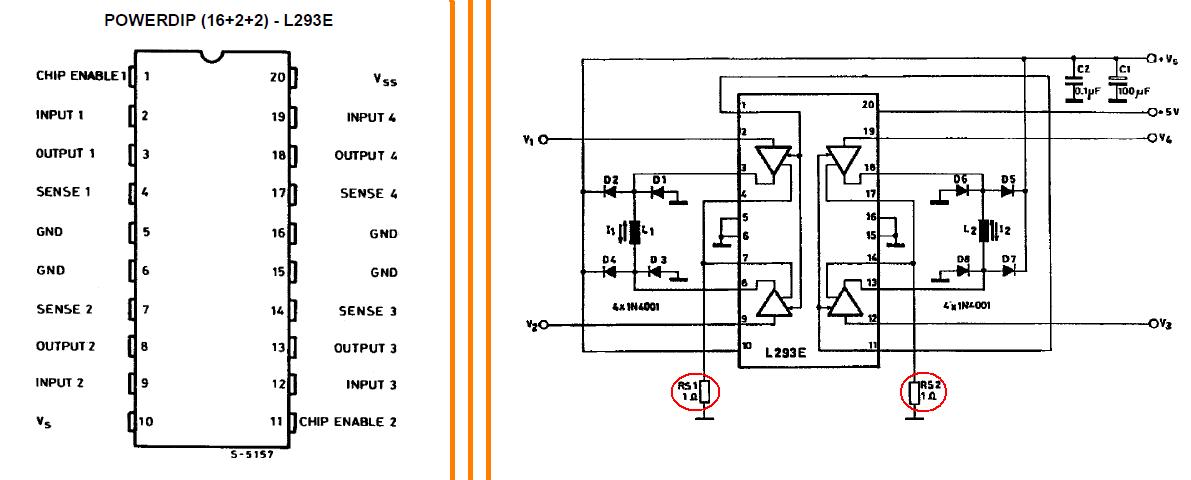

Additionally, the L293E has external connection of sensing resistors, for switchmode control.

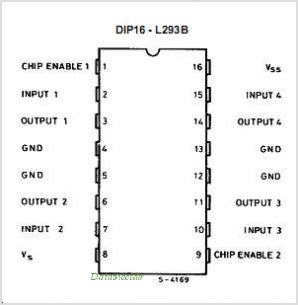

The L293B and L293E are package in 16 and 20-pin plastic DIPs respectively ; both use the four center pins to conduct heat to the printed circuit board.

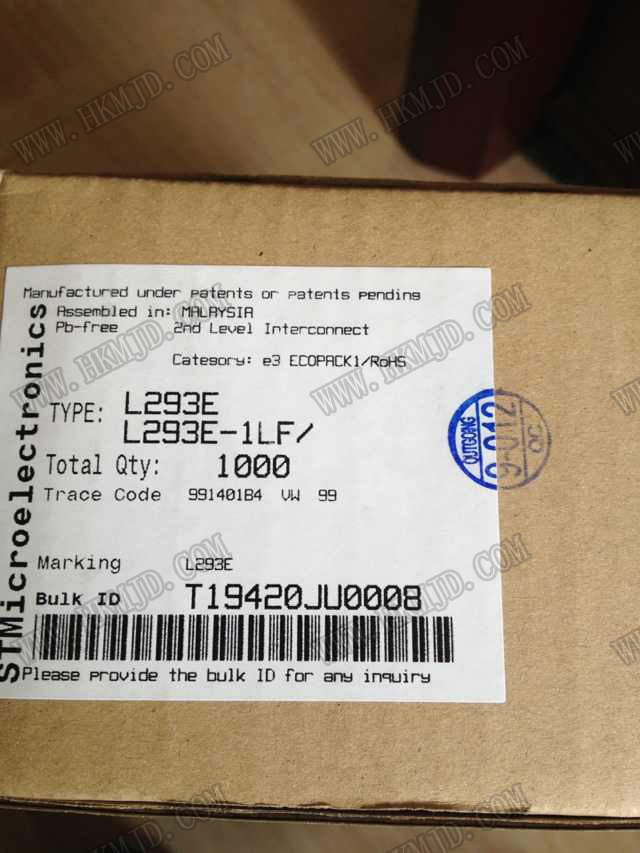

L293E Pohoto :
