Shenzhen Mingjiada Electronics Co., Ltd. supply Ethernet IC BCM56504B2KEBG 24-port GbE Multilayer Switch with 4 10GbE / HiGig+™ ports, brand new and original, please contact Mr. Chen if you are interested.
The BCM56504 is the highly integrated and cost effective fifth generation of the StrataSwitch and StrataXGS product families.The BCM56504 is a single-chip solution port with 24-GbE ports and four 10-GbE / HiGig + uplinks.
The BCM56504 has an integrated 24-GbE port and can operate at 10/100 /1000 Mbps. The uplink port can operate in two modes: 10-GbE switching mode and HiGig + uplink mode. The integrated 10-GbE switch ports are CX-4 compliant XAUI™ interfaces. HiGig + uplink interfaces are used to connect larger stacked systems of other StrataXGS devices or backplanes in BCM5675 / BCM5676 switch matrices via multi-slot redundant chassis systems.
The BCM56504 series features high integration and high port density for standalone, stackable and enterprise applications in chassis suitable for edge, aggregation and core area configurations of the enterprise. the BCM56504 is also ideal for embedded switches blade server switches, ATCA chassis, IPDSLAM, 3G and other applications wireless base stations etc.

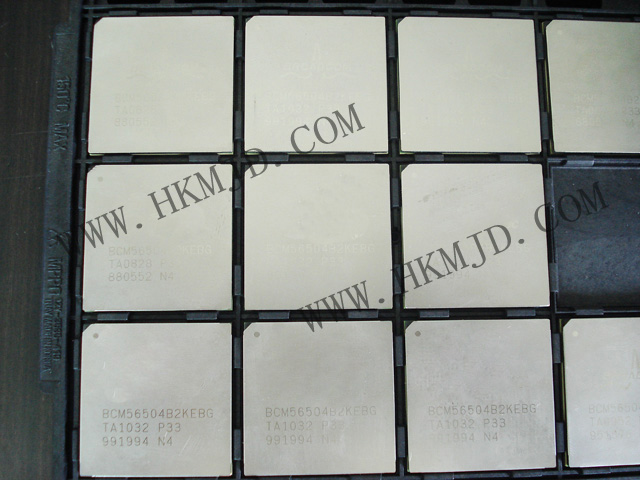

Model: BCM56504B2KEBG
Year: 12+

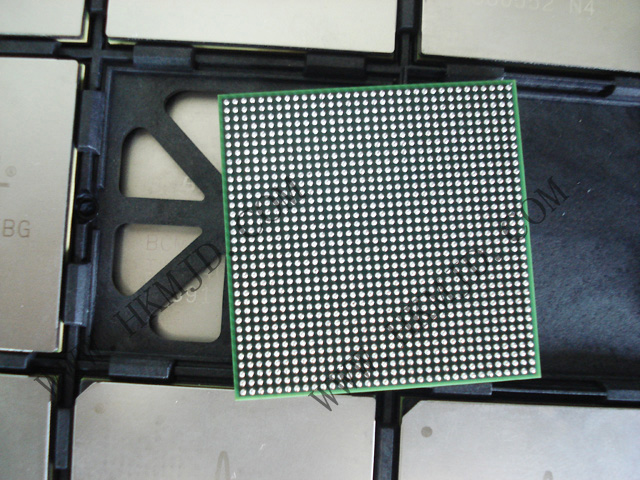

Package: BGA
Features
- 24 10/100/1000 Mbps Ethernet ports, supporting copper and fibre connections
- Fifth generation StrataSwitch® and StrataXGS ® product lines
- Four 12 Gbps or 10 Gbps HiGig +™ port uplink interfaces
- Four 10-GbE switching ports with CX4 support
- Wire-speed switching for all packet sizes and conditions
- On-chip packet memory and table memory
- IPv6 routing and tunneling
- Advanced Fast Filter Processor (FFP) ContentAware™ classification
- Advanced security features in hardware
- Cross-stack support for port trunking and mirroring
- Advanced packet flow control.
- Head-of-line blocking prevention
- Backpressure support
- 8 QoS queues per port, hierarchical minimum/per-queue per class of service (CoS) maximum shaping per port
- Standards-compliant 802.1ad provider bridging
