Series CameraChip™, OmniPixel3-HS™, TrueFocus™
Manufacturer : OmniVision Technologies Inc
Pixel size:1.75µm x 1.75µm
Active pixel :2048H x 1536V
FPS 15
Power voltage :2.6 V ~ 3 V
Type CMOS imaging
The OV03642 is the most advanced 1/4-inch, 3 megapixel
SOC CameraChip sensor on the market today, both in
terms of pixel quality as well as the new embedded
TrueFocus ISP (image signal processing). Featuring
OmniVision's high sensitivity 1.75 micron OmniPixel3-HS™
architecture, the OV3642 achieves a sensitivity of
960mV/(Lux-sec), delivering unparalleled low-light
performance, which is crucial for all new high frame rate
video applications and taking pictures without a flash.

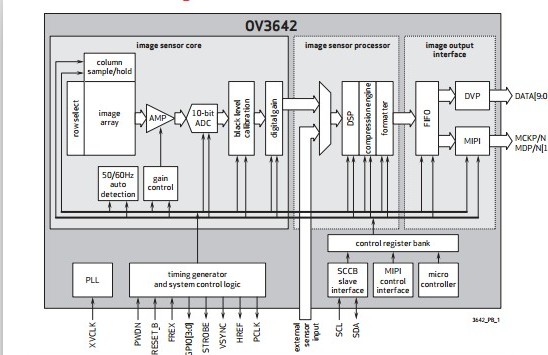

The embedded TrueFocus ISP (image signal processing)
provides all functionality of a complete camera on a single
chip, and features extended depth of field (EDoF)
capabilities. The unique TrueFocus capabilities can be
used with either wave front coded (WFC) lenses as well as
standard traditional lenses, generating sharper and
clearer images and videos to give the ultimate imaging
experience for all camera phone applications.

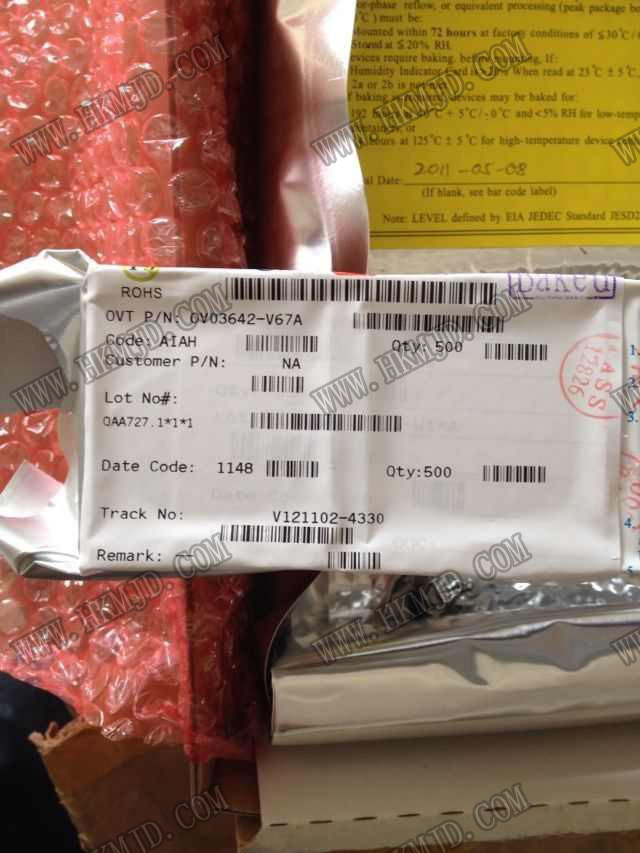

The OV03642-V67A has an embedded microcontroller to support
an internal auto focus engine, a programmable general
