DC to DC Converter and Switching Regulator Chip TI TPS62560DRVR TPS62560

Part number	Brand	Date	QTY	Package	Remarks
TPS62560DRVR	TI	14+ROHS	9900	SON-6	Original have in stock

PDF datasheet:

Datasheets	TPS62560-62
Product Photos	DRV-6-SON Pkg
PCN Packaging	QFN,SON Reel Diameter 13/Sep/2013
Standard Package	3,000
Category	Integrated Circuits (ICs)
Family	PMIC - Voltage Regulators - DC DC Switching Regulators
Series	-
Packaging	Tape & Reel (TR)
Type	Step-Down (Buck)
Output Type	Adjustable
Number of Outputs	1
Voltage - Output	0.85 V ~ 5.5 V
Voltage - Input	2.5 V ~ 5.5 V
PWM Type	Voltage Mode
Frequency - Switching	2.25MHz
Current - Output	600mA
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-SON (2x2)
For Use With	TPS62560EVM-330-ND - TPS62560EVM-330

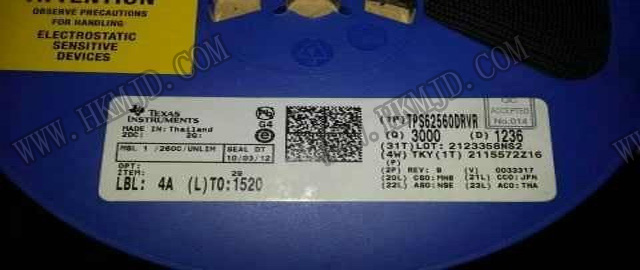

PHOTO:
