IC UART W/PAR PORT DUAL 68PLCC EXAR ST16C452CJ68TR New and original have in stock
| Part number | Brand | Date | QTY | Package | Remarks |
| ST16C452CJ68TR | EXAR |
14+ROHS | 9900 | PLCC |
Original have in stock |
PDF datasheet:

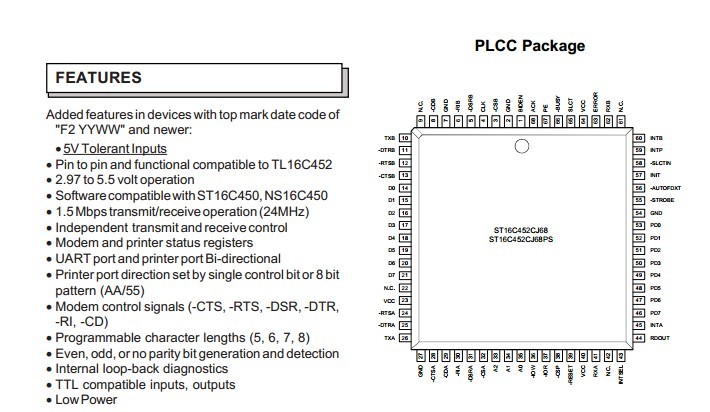

The ST16C452/ST16C452PS (452/452PS) is a dual universal asynchronous receiver and transmitter (UART)
with an added bi-directional parallel port that is directly compatible with a CENTRONICS type printer. The parallel
port is designed such that the user can configure it as general purpose I/O interface, or for connection to other
printer devices. The 452/452PS provides enhanced UART functions, a modem control interface, and data rates
up to 1.5Mbps. Onboard status registers provide the user with error indications and operational status. The system
interrupts and control may be tailored to meet user requirements. An internal loop-back capability allows onboard
diagnostics. A programmable baud rate generator is provided to select transmit and receive clock rates from 50
bps to 1.5 Mbps. The 452/452PS is available in a 68 pin PLCC package. The 452/452PS is compatible with the
16C450. The 452 is available in two versions, the ST16C452 and the ST16C452PS. The ST16C452 provides
single hardware pin to control the printer port data direction while the 452PS provides an additionally software
control bit to control the printer port data direction to become compatible PS/2 operating system.
The 452/452PS is fabricated in an advanced CMOS process with low power consumption.
| Datasheets | ST16C452/PS |
|---|---|
| PCN Assembly/Origin | Alternate Assembly Site 02/Apr/2014 |
| Standard Package | 250 |
| Category | Integrated Circuits (ICs) |
| Family | Interface - UARTs (Universal Asynchronous Receiver Transmitter) |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Features | Low Power |
| Number of Channels | 2, DUART |
| FIFO's | 1 Byte |
| Protocol | Printer |
| Voltage - Supply | 2.97 V ~ 5.5 V |
| With Parallel Port | Yes |
| With Auto Flow Control | - |
| With IrDA Encoder/Decoder | - |
| With False Start Bit Detection | Yes |
| With Modem Control | Yes |
| With CMOS | Yes |
| Mounting Type | Surface Mount |
| Package / Case | 68-LCC (J-Lead) |
| Supplier Device Package | 68-PLCC |
