FSC FAN7930CMX 0.5 A POWER FACTOR CONTROLLER, 350 kHz
| Part number | Brand | Date | QTY | Package | Remarks |
| FAN7930CMX | FSC | 14+ROHS | 9900 | SOP-8 |
Original have in stock |
PDF datasheet:
Feature
PFC-Ready Signal
Input Voltage Absent Detection
Maximum Switching Frequency Limitation
Internal Soft-Start and Startup without Overshoot
Internal Total Harmonic Distortion (THD) Optimizer
Precise Adjustable Output Over-Voltage Protection
Open-Feedback Protection and Disable Function
Zero-Current Detector (ZCD)
150μs Internal Startup Timer
MOSFET Over-Current Protection (OCP)
Under-Voltage Lockout with 3.5V Hysteresis
Low Startup and Operating Current
Totem-Pole Output with High State Clamp
+500/-800mA Peak Gate Drive Current

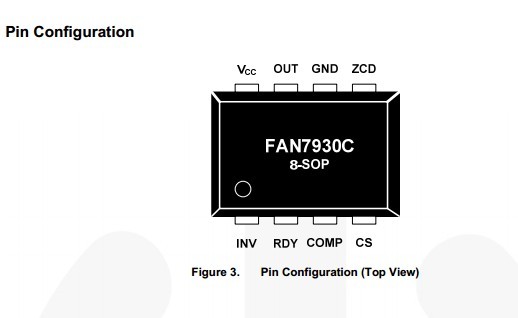

8-Pin SOP
Applications
Adapter
Ballast
LCD TV, CRT TV
SMPS
Description

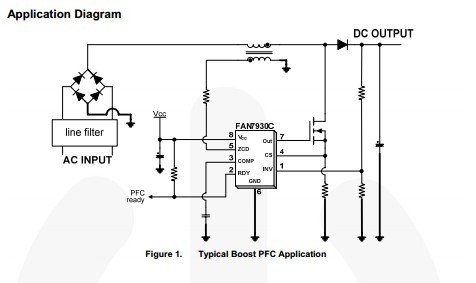

The FAN7930C is an active power factor correction
(PFC) controller for boost PFC applications that operate
in critical conduction mode (CRM). It uses a voltagemode PWM that compares an internal ramp signal with
the error amplifier output to generate a MOSFET turn-off
signal. Because the voltage-mode CRM PFC controller
does not need rectified AC line voltage information, it
saves the power loss of an input voltage sensing network
necessary for a current-mode CRM PFC controller.
FAN7930C provides over-voltage protection (OVP),
open-feedback protection, over-current protection
(OCP), input-voltage-absent detection, and undervoltage lockout protection (UVLO). The PFC-ready pin
can be used to trigger other power stages when PFC
output voltage reaches the proper level with hysteresis.
The FAN7930C can be disabled if the INV pin voltage is
lower than 0.45V and the operating current decreases to
a very low level. Using a new variable on-time control
method, THD is lower than the conventional CRM boost
PFC ICs.
SPECIFICATIONS
| Mfr Package Description | MS-012AA, SOP-8 |
| Lead Free | Yes |
| EU RoHS Compliant | Yes |
| Status | ACTIVE |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Surface Mount | Yes |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Finish | MATTE TIN |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Package Body Material | PLASTIC/EPOXY |
| Temperature Grade | AUTOMOTIVE |
| Control Mode | VOLTAGE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Nom | 14 V |
| Output Current-Max | 0.5000 A |
| Analog IC - Other Type | POWER FACTOR CONTROLLER |
| Regulating Voltage-Nom | 13 V |
| Switcher Configuration | BOOST |
| Input Voltage Limit-Max | 20 V |
| Input Voltage Limit-Min | 9.5 V |
| Switching Frequency-Max | 350 kHz |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -40 Cel |
