Toshiba TK10P60W Switching Voltage Regulators MJD have in stock
| Part number | Brand | Date | QTY | Package | Remarks |
TK10P60W |
Toshiba |
14+ROHS | 9900 | TO-252 |
Original have in stock |
Features
(1) Low drain-source on-resistance: RDS(ON) = 0.327 Ω (typ.) by used to Super Junction Structure : DTMOS
(2) Easy to control Gate switching
(3) Enhancement mode: Vth = 2.7 to 3.7 V (VDS = 10 V, ID = 0.5 mA)
| Datasheets | TK10P60W |
|---|---|
| Product Photos | TO-252 DPak |
| Featured Product | DTMOSIV Superjunction MOSFETs |
| Standard Package | 1 |
| Category | Discrete Semiconductor Products |
| Family | FETs - Single |
| Series | - |
| Packaging | Digi-Reel® |
| FET Type | MOSFET N-Channel, Metal Oxide |
| FET Feature | Super Junction |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 9.7A (Ta) |
| Rds On (Max) @ Id, Vgs | 430 mOhm @ 4.9A, 10V |
| Vgs(th) (Max) @ Id | 3.7V @ 500µA |
| Gate Charge (Qg) @ Vgs | 20nC @ 10V |
| Input Capacitance (Ciss) @ Vds | 700pF @ 300V |
| Power - Max | 80W |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Dynamic Catalog | N-Channel Standard FETs |
| Other Names | TK10P60WRVQDKR |

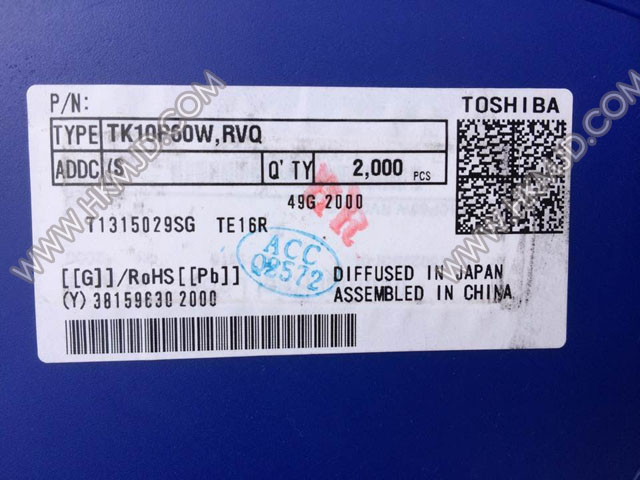

POHOTO:
