EP5368QI is a highly integrated synchronous buck switching power supply converter, available from Mingjiada Electronics. Below is a detailed introduction and supply information for this product.
Product Overview
The EP5368QI is a highly integrated synchronous buck DC-DC converter belonging to the Enpirion® 5300 series. Employing advanced PowerSoC technology, it integrates a PWM controller, power MOSFET, inductor, and compensation circuitry within an ultra-compact package. A complete power solution requires only two external MLCCs (multi-layer ceramic capacitors).
This chip operates with an input voltage range of 2.4V to 5.5V, featuring an adjustable output voltage from 0.603V to 5.1V. It delivers a maximum output current of 600mA at a switching frequency up to 4MHz, achieving efficiency of up to 94% and supporting remote switch control functionality. Its exceptionally compact solution size (just 3.0mm x 3.0mm x 1.1mm) and high integration make it particularly suitable for space-constrained applications.
Specifications
Manufacturer: Intel
Product Model: EP5368QI
Product Series: Enpirion® 5300
Input Voltage Range: 2.4 V to 5.5 V
Output Voltage Range: 0.603 V to 5.1 V
Maximum Output Current: 600 mA
Switching Frequency: 4 MHz
Efficiency: Up to 94%
Operating Temperature Range: -40°C to +85°C
Package Type: 16-PowerTFQFN Module (Supplier Device Package: 16-QFN (3x3))
Control Features: Enable, High-Level Active
Protection Functions: Remote On/Off, OCP, OTP, SCP, UVLO
Mounting method: Surface mount (SMD/SMT)
Features
• Integrated inductor
• 3mm x 3mm x 1.1mm QFN package
• Requires only two low-cost MLCC capacitors
• 4MHz switching frequency
• High-efficiency conversion, up to 94%
• Continuous output current up to 700mA
• Wide input voltage range: 2.4V to 5.5V
• Output voltage range: 0.603V to input voltage minus 0.4V
• Supports 100% duty cycle
• Standby current less than 1μA
• Low output ripple for RF compatibility
• Short-circuit and overcurrent protection
• Undervoltage lockout and thermal shutdown
• Stable operation across full operating range
• RoHS compliant; MSL Level 3, 260°C reflow soldering
The EP5368QI, with its compact size, high efficiency and outstanding performance, is ideally suited for the following applications:
• Noise-sensitive RF applications
• Space-constrained applications
• Smartphones and handheld computers
• Personal media players
• Advanced mobile processors, DSPs, I/O, memory, video and multimedia engines
Mingjiada Electronics Supply Advantages
Genuine Product Assurance: All EP5368QI components sourced through authorised channels guarantee 100% authenticity and reliable quality.

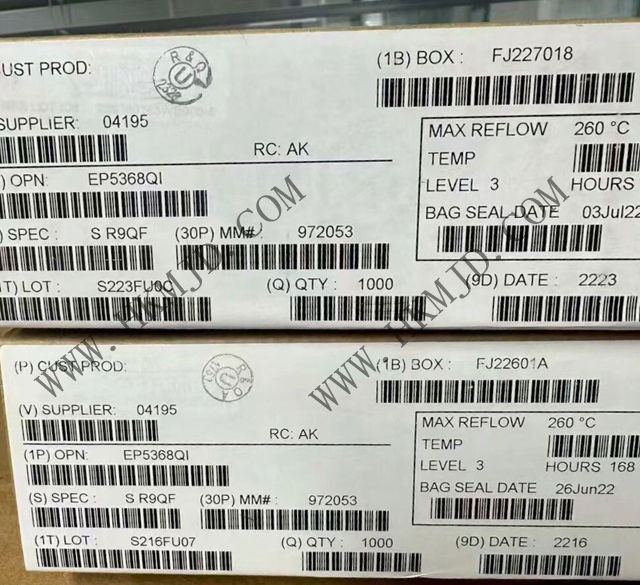

Extensive Stock Availability: Maintains substantial EP5368QI inventory to fulfil urgent requirements, supporting both small-batch samples and large-volume procurement.
