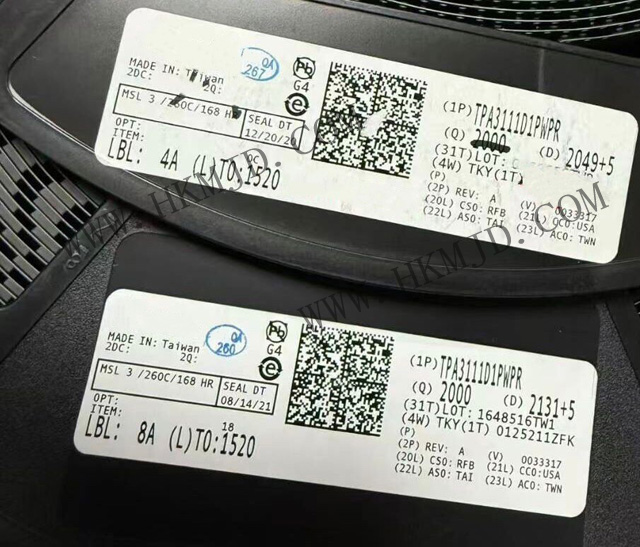

[Supply Original] TPA3111D1PWPR (TI) Mono Class-D Audio Power Amplifier
Product Details:
The TPA3111D1PWPR is a 10W high-efficiency Class D audio power amplifier designed to drive bridged speakers. Advanced EMI suppression technology enables the use of inexpensive ferrite bead filters at the output while meeting EMC requirements. The TPA3111D1PWPR can drive monaural speakers down to 4Ω. Operating at over 90% efficiency, it requires no external heat sink during music playback.
TPA3111D1PWPR Product Features:
10W into 8Ω load, 10% THD+N from 12V supply
7W into 4Ω load, 10% THD+N from 8V supply
94% efficiency Class D operation into 8Ω load without heatsink
Wide supply voltage range, allowing operation from 8 to 26V
Filter-free operation
SpeakerGuard™ protection including adjustable power limiter and DC protection
Through-hole pin layout for easy PCB placement
Robust pin-to-pin short-circuit protection and thermal protection with auto-recovery option
Excellent THD+N and pop-free performance
Four selectable, fixed gain settings
Differential input
TPA3111D1PWPR Applications:
Televisions
Monitors and laptops
Consumer audio equipment

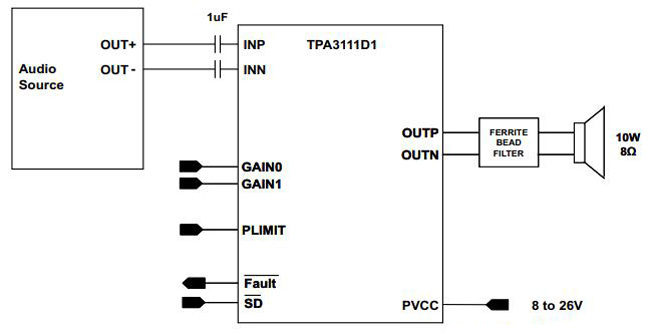

TPA3111D1PWPR – Simplified Application Diagram:
【Mingjiada Electronics】Stock available: TI (TPA3111D1PWPR) – 10W mono, 8V to 26V supply voltage, analogue input Class D audio amplifier supporting filterless operation with SpeakerGuard™. For further product details regarding the TPA3111D1PWPR, please visit Mingjiada Electronics' official website (www.mjdic.com) to enquire about supply details.
