ON NCP5269MNTWG NCP5269 Synchronous Buck Controller with Auto Power Controller with Auto Power Inputs for System Agent
| Part number | Brand | Date | QTY | Package | Remarks |
NCP5269MNTWG |
ON | 14+ROHS | 7500 | QFN-20 |
Original have in stock |
PDF datasheet:
Features
• Wide Input Voltage Range: from 3.3 V to 28 V
• Three Selectable Fixed Frequency 300 kHz, 400 kHz or 600 kHz
• 2−Bit VID Selects Four Independent Voltages from 0.65 V to 1.5 V
• ±1.0% System Accuracy
• Differential Remote Output Voltage Sensing
• Soft Transient Control Reduces Inrush Current and Audio Noise
• Build−in Power−Good Masking Supports Voltage Identification(VID) On−The−Fly Transients
• Simple Resistor Programming Voltage Levels
• Programmable Soft−Start through a Single Capacitor
• Automatic Power−Saving Mode
• Input Supply Voltage Feed Forward Control
• Resistive or Lossless Inductor’s DCR Current Sensing
• Over−Temperature Protection
• Built−in Adaptive Gate Drivers
• Output Discharge Operation
• Built−in Over−Voltage, Under−Voltage and Over−Current Protection and Power Good Output
• This is a Pb−Free Device
Datasheet
| Datasheets | NCP5269 |
|---|---|
| Product Photos | 20-VFQFN |
| Standard Package | 3,000 |
| Category | Integrated Circuits (ICs) |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Series | - |
| Packaging | Tape & Reel (TR) |
| PWM Type | Controller |
| Number of Outputs | 1 |
| Frequency - Max | 600kHz |
| Duty Cycle | - |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Buck | Yes |
| Boost | No |
| Flyback | No |
| Inverting | No |
| Doubler | No |
| Divider | No |
| Cuk | No |
| Isolated | No |
| Operating Temperature | -40°C ~ 100°C |
| Package / Case | 20-VFQFN Exposed Pad |

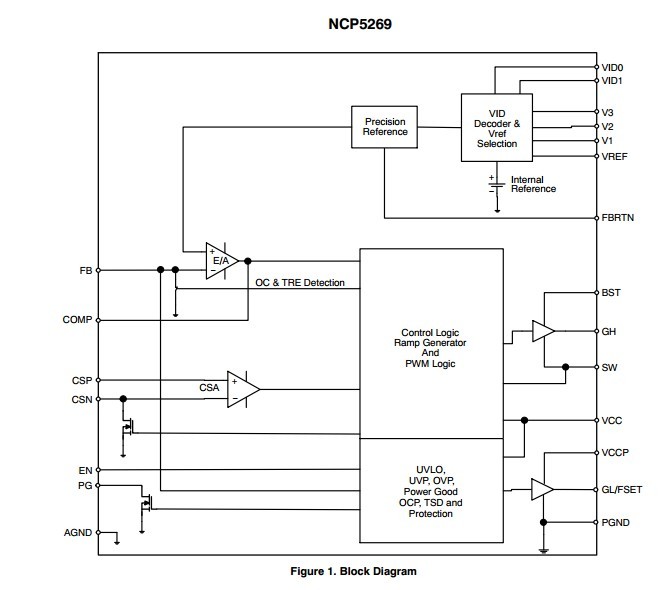

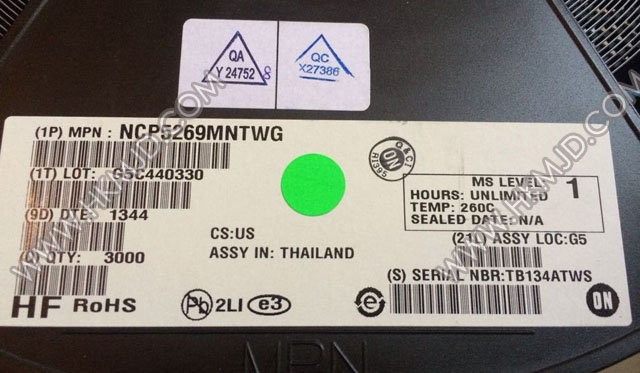

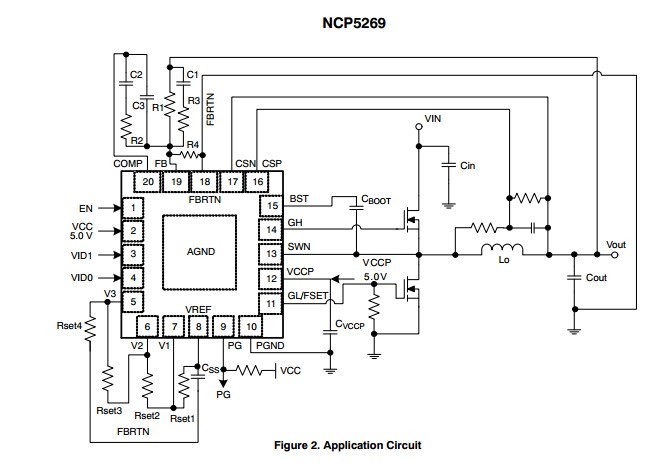

Picture:
