LT LT3693IDD 6 A SWITCHING REGULATOR, 2700 kHz SWITCHING
| Part number | Brand | Date | QTY | Package | Remarks |
LT3693IDD |
LT | 14+ROHS | 7500 | QFN |
Original have in stock |
FEATURES
Wide Input Range: 3.6V to 36V
3.5A Maximum Output Current
Adjustable Switching Frequency: 200kHz to 2.4MHz
Low Shutdown Current: IQ< 1μA
Integrated Boost Diode
Synchronizable Between 250kHz to 2MHz
Power Good Flag
Saturating Switch Design: 95m On-Resistance
0.790V Feedback Reference Voltage
Output Voltage: 0.79V to 30V
Thermal Protection
Soft-Start Capability
Small 10-Pin Thermally Enhanced MSOP and
(3mm ×3mm) DFN Packages

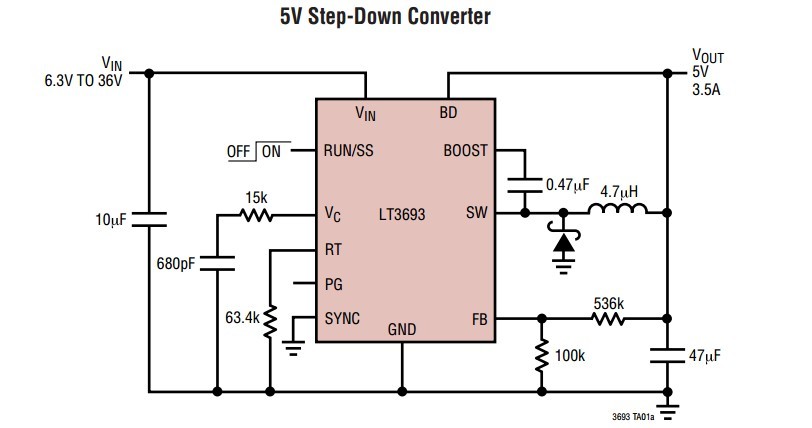

5V Step-Down Converter
APPLICATIONS
Automotive Battery Regulation
Power for Portable Products
Distributed Supply Regulation
Industrial Supplies
Wall Transformer Regulation
PDF datasheet:
SPECIFICATIONS
| Mfr Package Description | 3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-2, DFN-10 |
| Lead Free | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | ACTIVE |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | Yes |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5000 mm |
| Terminal Finish | MATTE TIN |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 10 |
| Package Body Material | PLASTIC/EPOXY |
| Temperature Grade | AUTOMOTIVE |
| Control Mode | PEAK CURRENT |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Nom | 10 V |
| Output Current-Max | 6 A |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Switcher Configuration | BUCK |
| Input Voltage Limit-Max | 36 V |
| Input Voltage Limit-Min | 3.6 V |
| Switching Frequency-Max | 2700 kHz |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -40 Cel |
