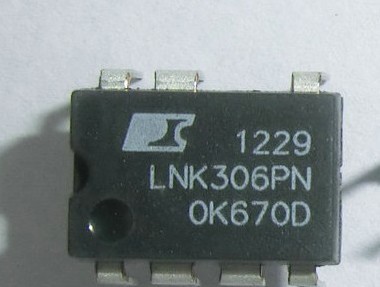

POWER LNK306PN LNK306 1.4 A SWITCHING REGULATOR, 70 kHz SWITCHING FREQ-MAX, PDIP8
| Part number | Brand | Date | QTY | Package | Remarks |
| LNK306PN | POWER | 13+ROHS | 7500 | QFN-7 |
Original have in stock |
PDF datasheet:
SPECIFICATIONS
| Mfr Package Description | LEAD FREE, PLASTIC, DIP-8 |
| Lead Free | Yes |
| EU RoHS Compliant | Yes |
| Status | ACTIVE |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Finish | MATTE TIN |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Package Body Material | PLASTIC/EPOXY |
| Temperature Grade | AUTOMOTIVE |
| Control Technique | PULSE WIDTH MODULATION |
| Output Current-Max | 1.4 A |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Switcher Configuration | BUCK |
| Switching Frequency-Max | 70 kHz |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -40 Cel |
