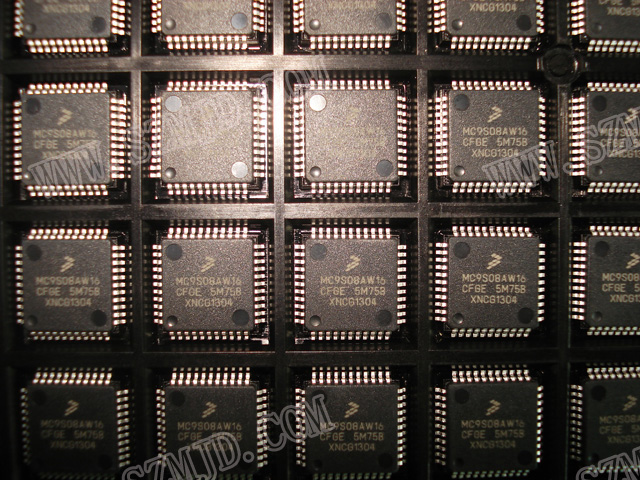

FREESCALE MC9S08AW16CFGE MC9S08AW16 MCU 8-bit S08 S08 CISC 16KB Flash 3.3V/5V 44-Pin LQFP Tray
| Part number | Brand | Date | QTY | Package | Remarks |
| MC9S08AW16CFGE | FREESCALE | 13+ROHS | 7500 | QFP-44 |
Original have in stock |
PDF datasheet:
| EU RoHS | Compliant |
| Data Bus Width (bit) | 8 |
| CECC Qualified | No |
| Instruction Set Architecture | CISC |
| Device Core | S08 |
| Maximum Clock Rate (MHz) | 40 |
| Number of ADCs | Single |
| Program Memory Type | Flash |
| Program Memory Size | 16KB |
| RAM Size | 1KB |
| Family Name | S08 |
| Number of Programmable I/Os | 34 |
| Number of Timers | 1 |
| ADC Channels | 8 |
| ADC Bits | 10 |
| Pin Count | 44 |
| Supplier Package | LQFP |
| Programmability | Yes |
| SPI | 1 |
| I2C | 1 |
| UART | 2 |
| Maximum Speed (MHz) | 40 |
| Minimum Operating Supply Voltage (V) | 2.7 |
| Typical Operating Supply Voltage (V) | 3.3|5 |
| Packaging | Tray |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Standard Package Name | QFP |
| Military Qualified | No |
| Lead Shape | Gull-wing |
| Mounting | Surface Mount |
| Package Height (mm) | 1.45(Max) |
| Package Length (mm) | 10 |
| Package Width (mm) | 10 |
| PCB | 44 |
| Standard Package Name | QFP |
| Supplier Package | LQFP |
| Pin Count | 44 |
| Lead Shape | Gull-wing |
| Taxonomy |
