INTERSIL ISL80102IRAJZ ISL80102 High Performance 2A and 3A Linear Regulators
| Part number | Brand | Date | QTY | Package | Remarks |
| ISL80102IRAJZ | INTERSIL | 14+ROHS | 7500 | DFN-10 |
Original have in stock |
PDF datasheet:
Features
• 0.5% initial VOUT Accuracy
• Designed for 2.2V to 6V Input Supply
• ±1.8% Guaranteed VOUT Accuracy for Junction Temperature Range from -40°C to +125°C
• 185mV Dropout @ 3A, 125mV Dropout @ 2A
• Fast Load Transient Response
• Rated Output Current Options of 2A and 3A
• Adjustable In-Rush Current Limiting
• Fixed and Adjustable VOUT Options Available
• 65dB Typical PSRR
• Output Noise of 100µVRMS between 300Hz to 300kHz
• PG Feature
• 900mV Enable Input Threshold
• Short-Circuit Current Protection
• 1A Peak Reverse Current
• Over-Temperature Shutdown
• Any Cap Stable with Minimum 10µF Ceramic
• Available in a 10 Ld DFN Package and soon to follow TO220-5, TO263-5 and SOT223-5 (1A and 2A versions)
• Pb-Free (RoHS Compliant)
| Category | Integrated Circuits (ICs) |
|---|---|
| Family | PMIC - Voltage Regulators - Linear (LDO) |
| Series | - |
| Packaging | Digi-Reel® |
| Regulator Topology | Positive Adjustable |
| Voltage - Output | 0.8 V ~ 5 V |
| Current - Output | 2A |
| Voltage - Dropout (Typical) | 0.081V @ 2A |
| Number of Regulators | 1 |
| Voltage - Input | 2.2 V ~ 6 V |
| Current - Limit (Min) | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Dynamic Catalog | < 5V(Max) |

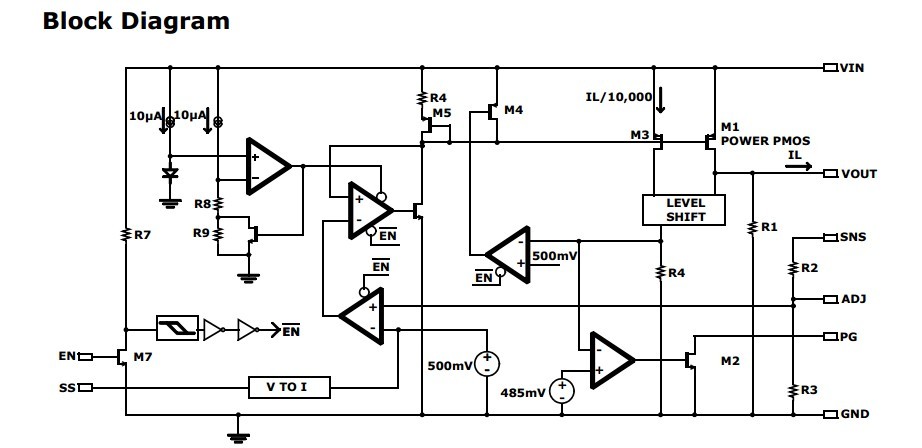

Picture:
