VISHAY TSAL6100 EMITTER IR 5MM HI EFF 940NM
| Part number | Brand | Date | QTY | Package | Remarks |
| TSAL6100 | VISHAY | 13+ROHS | 7500 | DIP-2 |
Original have in stock |
FEATURES
• Package type: leaded
• Package form: T-1¾
• Dimensions (in mm): ∅ 5
• Peak wavelength: λp = 940 nm
• High reliability
• High radiant power
• High radiant intensity
• Angle of half intensity: ϕ = ± 10°
• Low forward voltage
• Suitable for high pulse current operation
• Good spectral matching with Si photodetectors
• Lead (Pb)-free component in accordance with
RoHS 2002/95/EC and WEEE 2002/96/EC
APPLICATIONS
• Infrared remote control units with high power reqirements
• Free air transmission systems
• Infrared source for optical counters and card readers
• IR source for smoke detectors
| Datasheet | TSAL6100  |
|---|---|
| Standard Package | 4,000 |
| Category | Optoelectronics |
| Family | Infrared, UV, Visible Emitters |
| Series | - |
| Packaging | Bulk |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 80mW/sr @ 100mA |
| Wavelength | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Viewing Angle | 20° |
| Orientation | Top View |
| Mounting Type | Through Hole |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |

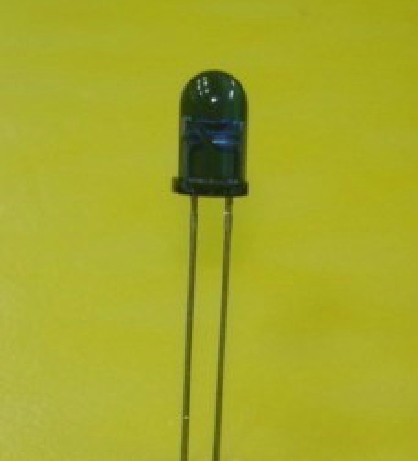

Picture：
